19 March 2014
⇐20140318 ⇐Week ⇐Rotation Today Rotation⇒ Week⇒ 20140320⇒

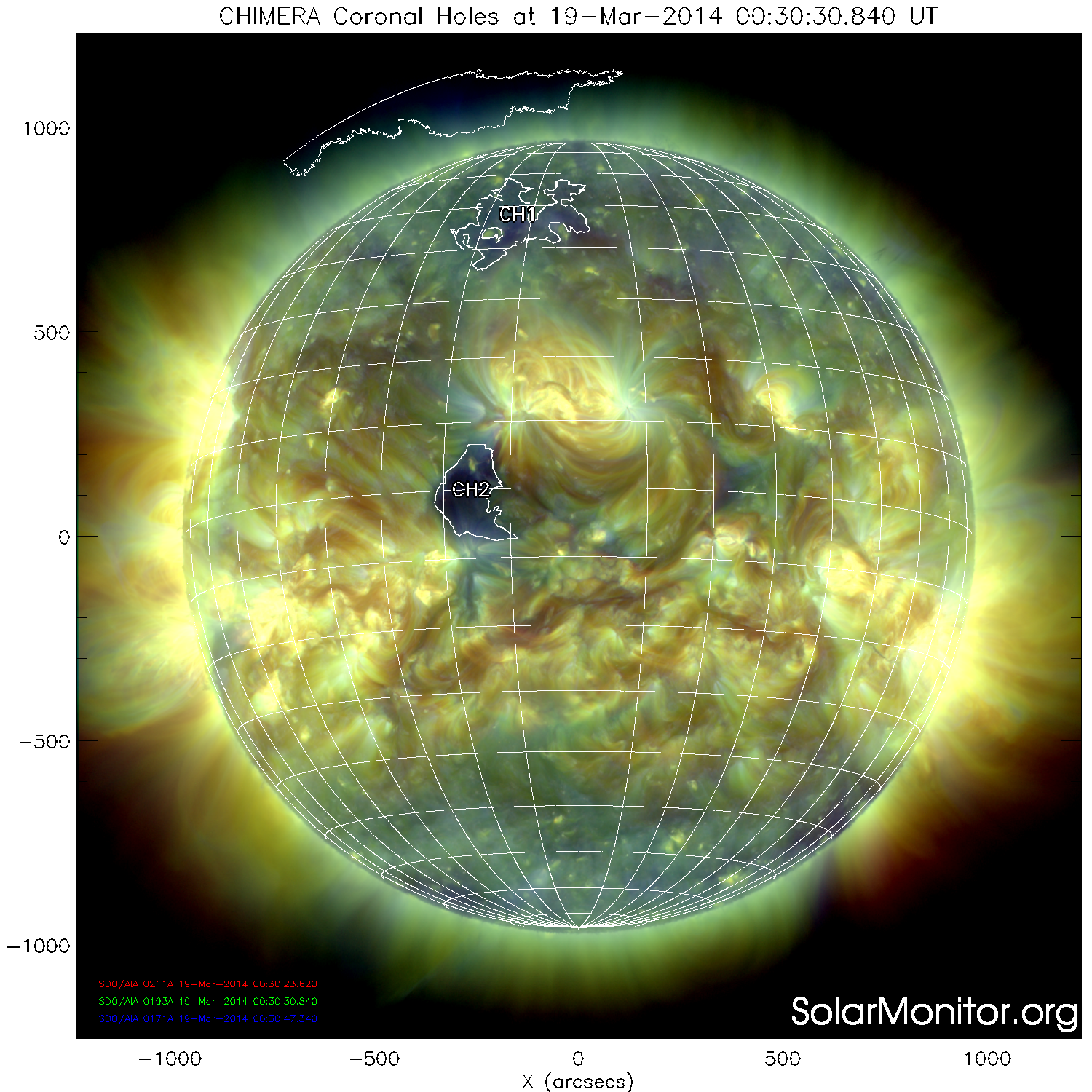

Today's Coronal Hole Properties
CHIMERA Number
Centroid
[Heliocentric]
Width
[°]
Area
[%]
< B >
[G]
< Φ >
[Mx]
1 E17N47
(-190",777") 		E27-W02
(29) 		1.1 0.6 6.2e32
2 E16S02
(-267",89") 		E21-E09
(12) 		0.9 8.3 1.6e33

Note: Solar Monitor's coronal hole segmentations are performed by CHIMERA, a copy of which is available at: github.com/TCDSolar/CHIMERA.

The operations of the CHIMERA algorithm is described in a peer reviewed paper: arxiv.org/abs/1711.11476.

An extensive copy of coronal hole properties are available at: solarmonitor.org/data.

The latest positions of the coronal holes are given in heliocentric co-ordinates, and the region positions are valid on 19-Mar-2014 20:35 UT .
