 22 November 2011
⇐20111121 ⇐Week ⇐Rotation Today Rotation⇒ Week⇒ 20111123⇒

NOAA
10 Active Regions
11346
11352
11353
11354
11355
11356
11357
11347
11350
11351
SMART
No Data
CHARM
No Data

Main Far-side SDO short-wave SDO long-wave

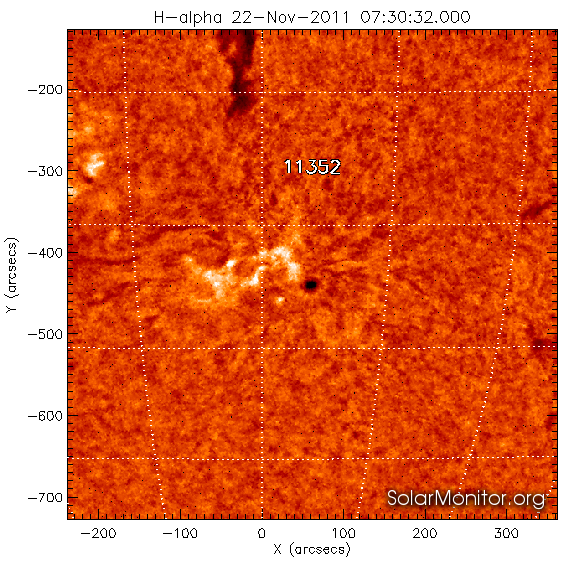

HMI Mag 20111122 20:52 AIA 4500Å 20111122 22:00 GHN Hα 20111122 07:30

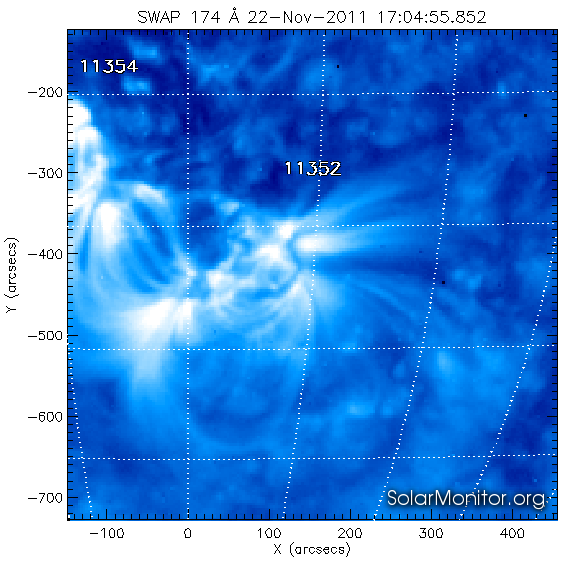

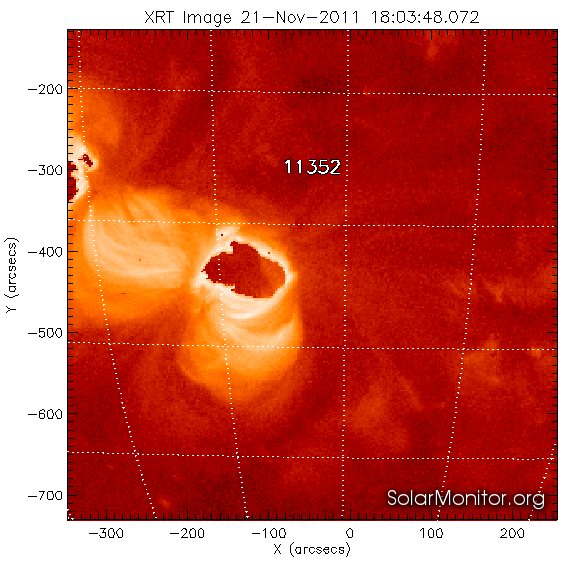

SWAP 174Å 20111122 17:04 AIA 193Å 20111122 22:37 XRT 20111121 18:03

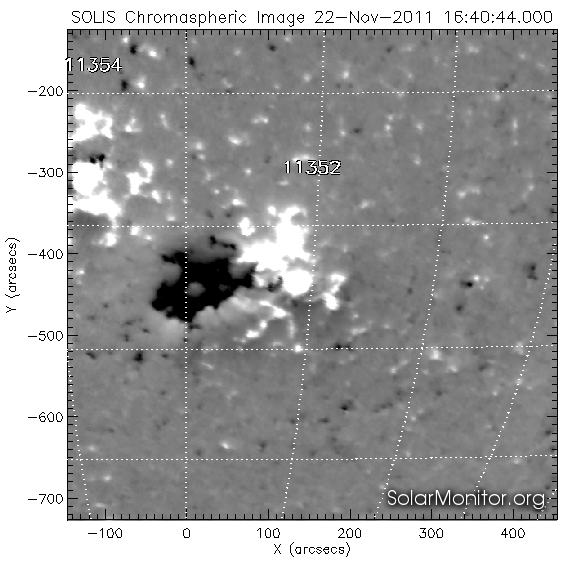

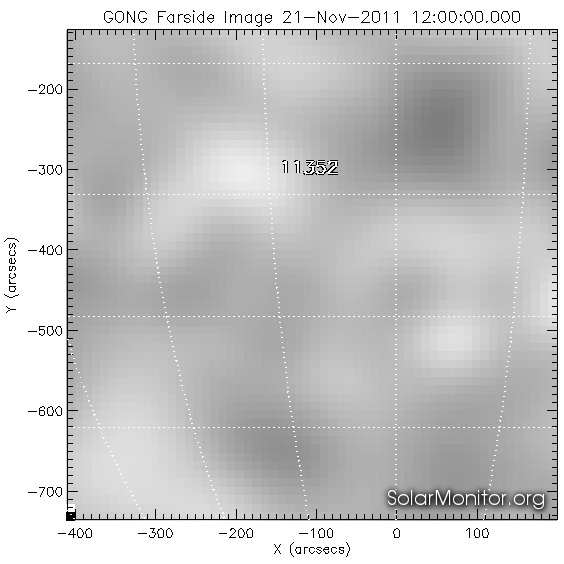

HMI Mag 20111122 20:52 SOLIS Mag 20111122 16:40 GONG Farside 20111121 12:00
No Time Data Available AIA 193Å 20111122 22:37 No Time Data Available

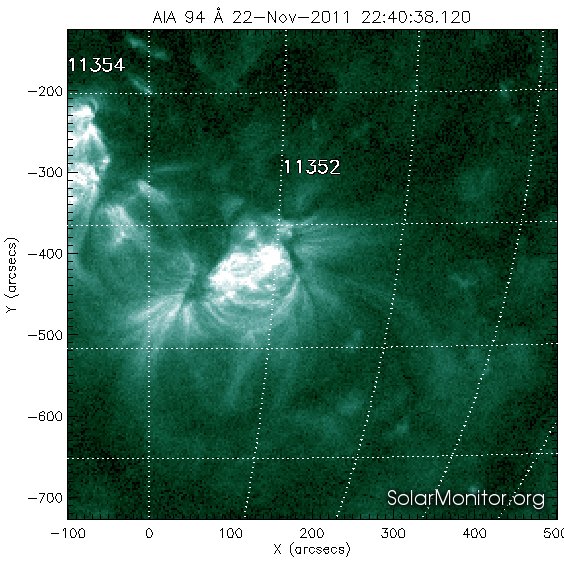

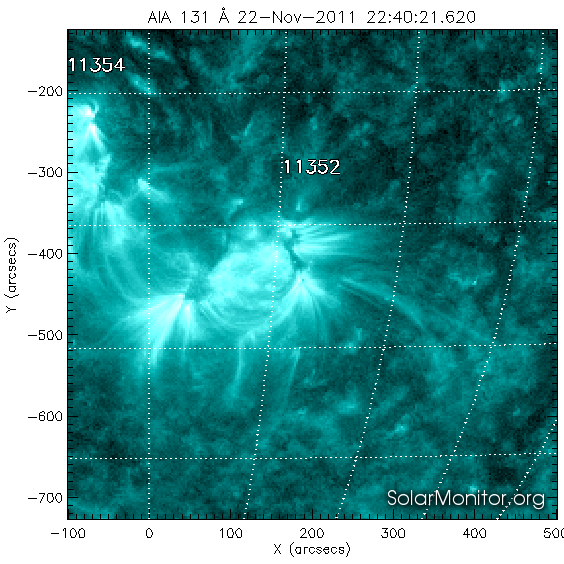

HMI Mag 20111122 20:52 AIA 94Å 20111122 22:40 AIA 131Å 20111122 22:40

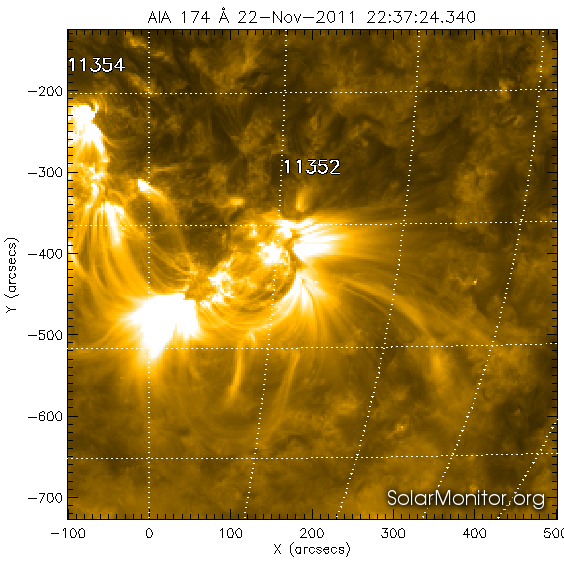

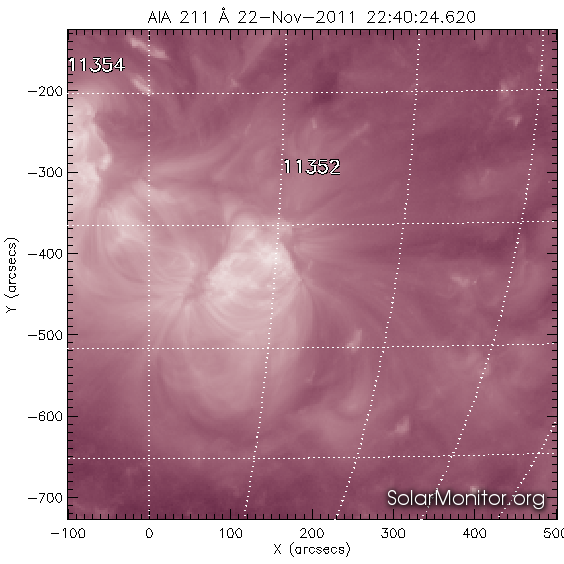

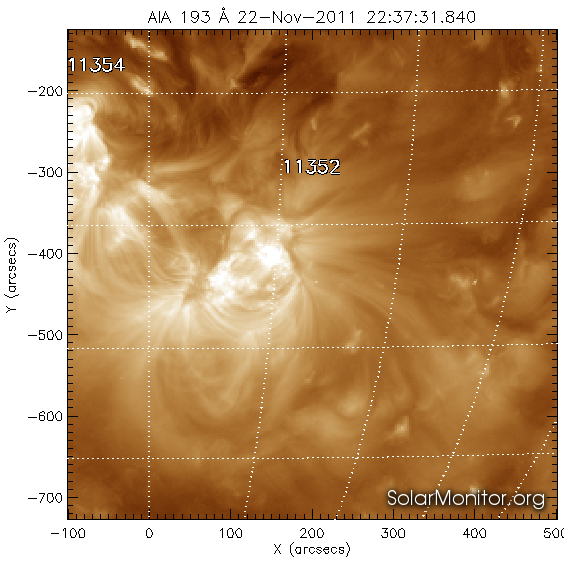

AIA 171Å 20111122 22:37 AIA 193Å 20111122 22:37 AIA 211Å 20111122 22:40

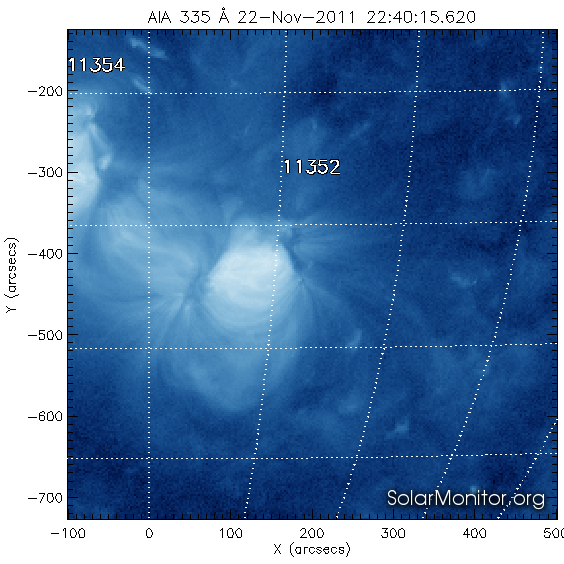

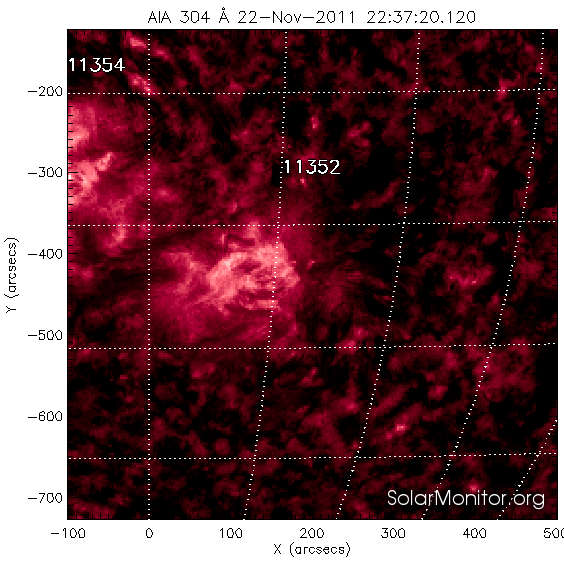

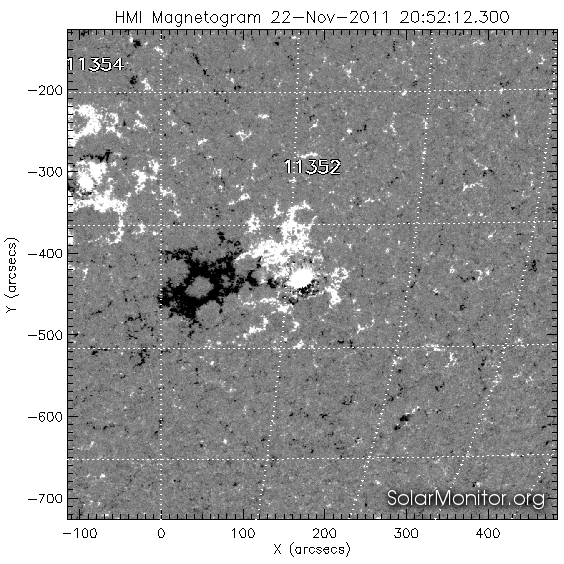

HMI Mag 20111122 20:52 AIA 304Å 20111122 22:37 AIA 335Å 20111122 22:40

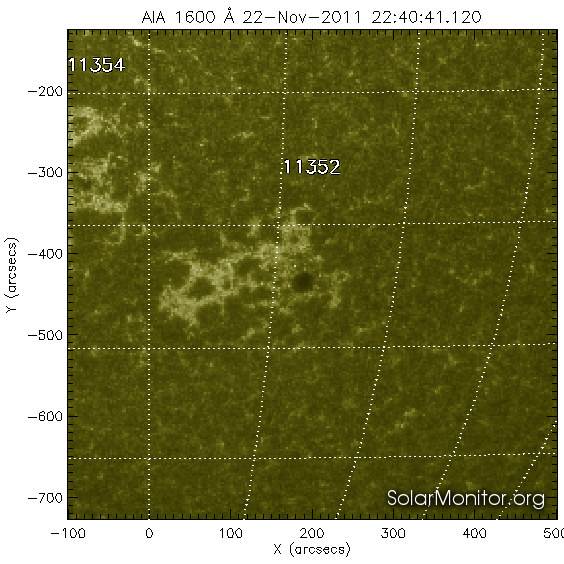

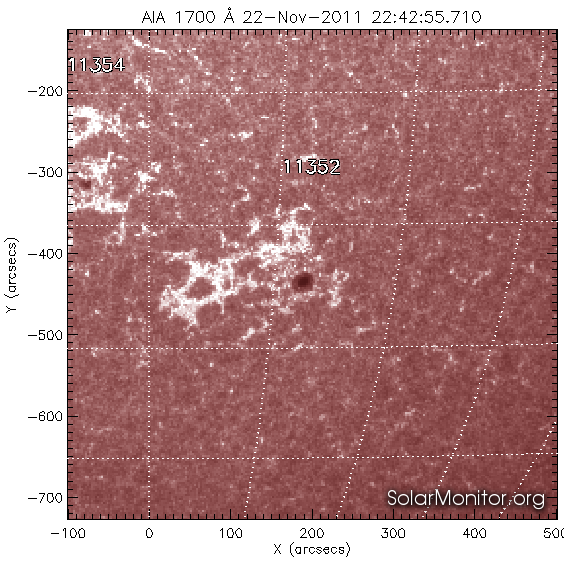

AIA 1600Å 20111122 22:40 AIA 1700Å 20111122 22:42 AIA 4500Å 20111122 22:00

IDL Access

Today's NOAA Active Regions
Group Number
Location
Hale
Class
McIntosh Class
Sunspot
Area
Number of Spots
Flares
History
11346 S17W70
(873",-294") 		β/β Cso/Cso 0050/0040 03/03 -
11352 S24W14
(215",-425") 		β/β Cso/Dso 0070/0120 03/07 -
11353 N07E03
(-50",85") 		β/α Cro/Hsx 0020/0020 03/02 -
11354 S16E03
(-49",-300") 		βγ/βγ Dso/Dai 0080/0220 07/12 C1.2(00:33)
/C3.1(00:03)
C1.8(04:48)
11355 N15E18
(-291",221") 		β/α Cao/Hsx 0140/0090 05/01 -
11356 N15E41
(-617",227") 		β/α Ehc/Hsx 0400/0110 06/01 C4.9(03:59)
C1.9(07:25)
C3.2(09:49)
C1.5(11:12)
C1.0(14:50)
C1.6(17:06)
C3.4(17:45)
/C1.0(13:10)
C1.3(18:19)
11357 N17W44
(647",261") 		β/β Cro/Dro 0020/0020 04/05 -
11347 N06W79
(948",95") 		/ / / / -
11350 N25W39
(555",388") 		/ / / / -
11351 S24W59
(761",-411") 		/ / / / -

Events not associated with currently named NOAA regions: None

Note: The tabulated data are based on the most recent NOAA/USAF Active Region Summary issued on 22-Nov-2011 00:30 UT , the values to the right of the forward slashes representing yesterdays values or events. Regions with no data in above property fields have decayed and exhibit no spots. The region positions are valid on 22-Nov-2011 23:47 UT .
