 21 April 2012
⇐20120420 ⇐Week ⇐Rotation Today Rotation⇒ Week⇒ 20120422⇒

NOAA
10 Active Regions
11459
11460
11461
11462
11463
11464
11465
11454
11457
11458
SMART
No Data
CHARM
No Data

Main Far-side SDO short-wave SDO long-wave

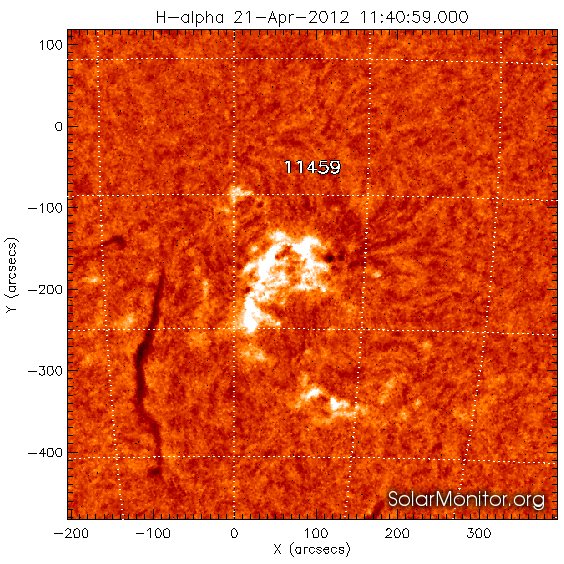

HMI Mag 20120421 03:17 AIA 4500Å 20120421 23:00 GHN Hα 20120421 11:40

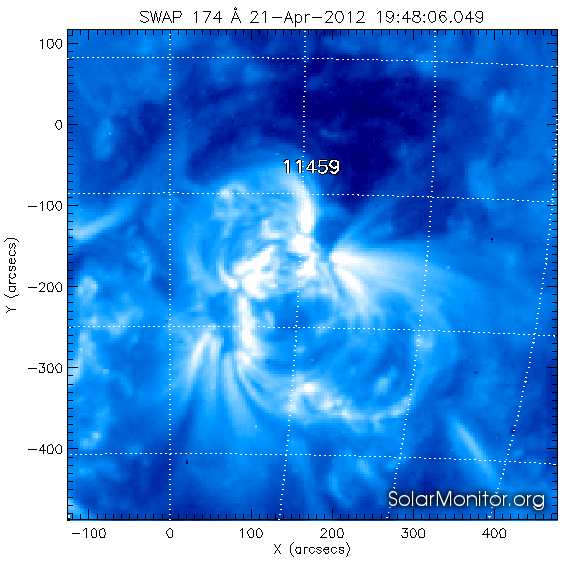

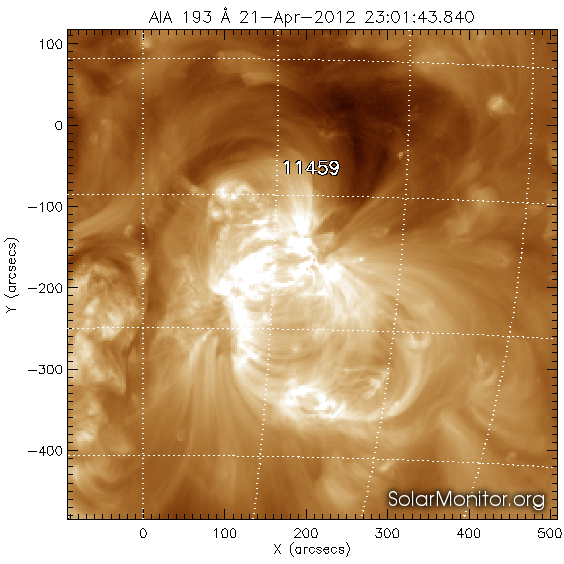

SWAP 174Å 20120421 19:48 AIA 193Å 20120421 23:01 XRT 20120420 17:54

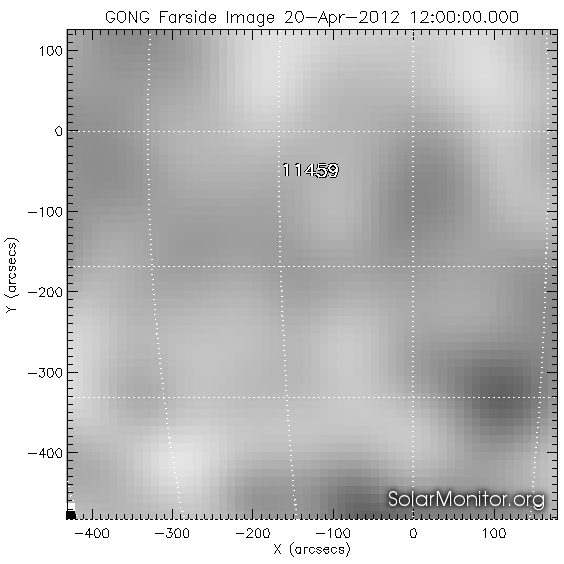

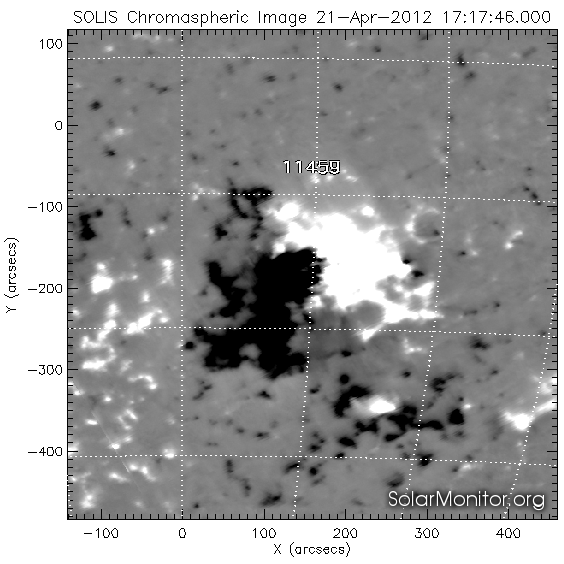

HMI Mag 20120421 03:17 SOLIS Mag 20120421 17:17 GONG Farside 20120420 12:00
No Time Data Available AIA 193Å 20120421 23:01 No Time Data Available

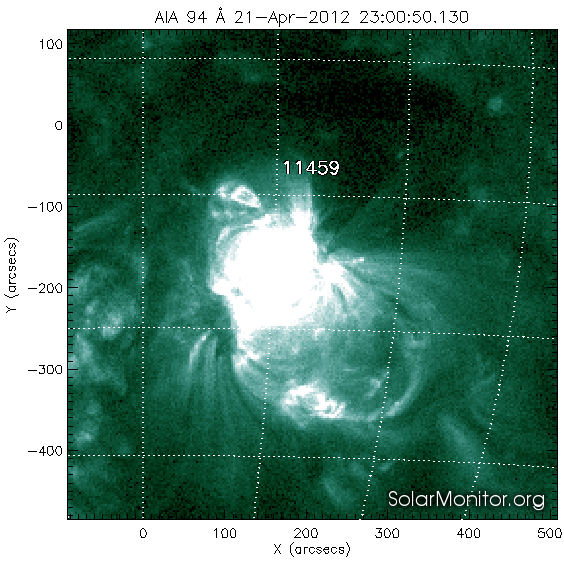

HMI Mag 20120421 03:17 AIA 94Å 20120421 23:00 AIA 131Å 20120421 23:01

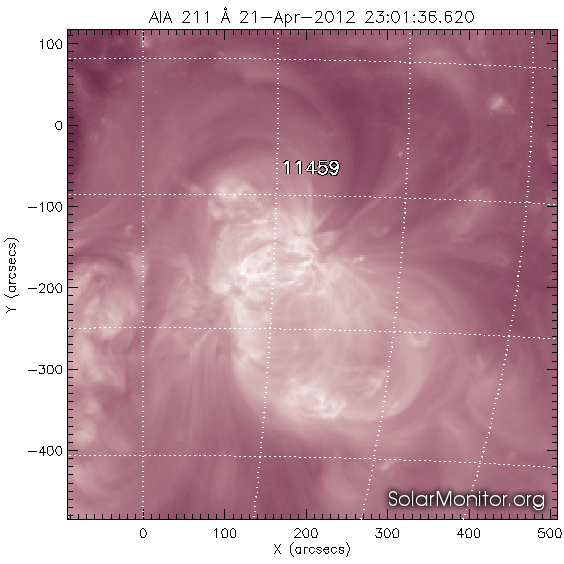

AIA 171Å 20120421 23:00 AIA 193Å 20120421 23:01 AIA 211Å 20120421 23:01
HMI Mag 20120421 03:17 AIA 304Å 20120421 23:00 AIA 335Å 20120421 23:01

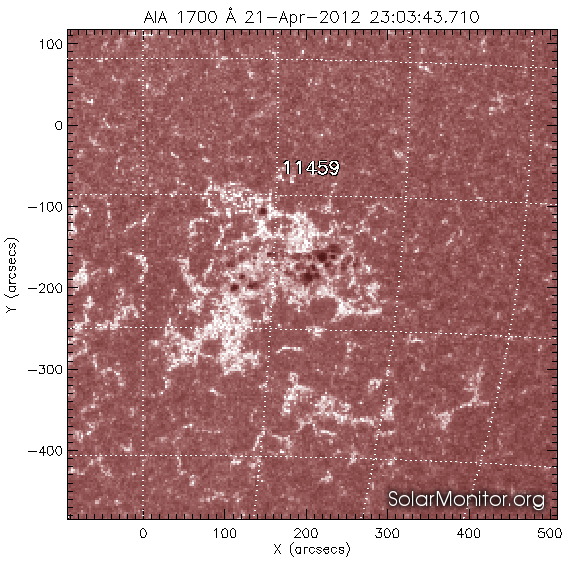

AIA 1600Å 20120421 23:00 AIA 1700Å 20120421 23:03 AIA 4500Å 20120421 23:00

IDL Access

Today's NOAA Active Regions
Group Number
Location
Hale
Class
McIntosh Class
Sunspot
Area
Number of Spots
Flares
History
11459 S16W13
(207",-184") 		β/β Dai/Dai 0400/0180 40/27 C1.8(20:10)
/C1.6(17:22)
11460 N15W29
(448",317") 		β/β Dkc/Dsi 0450/0180 19/14 C2.4(01:27)
11461 N12E10
(-162",278") 		β/β Bxo/Cso 0010/0030 02/02 -
11462 S25W59
(742",-363") 		β/β Dho/Dso 0410/0050 14/08 C1.0(11:00)
/C1.1(03:15)
11463 S26W78
(839",-401") 		β/β Cso/Cso 0100/0070 09/09 /C1.6(14:49)
11464 N23W26
(386",441") 		β/β Bxo/Bxo 0010/0010 02/02 -
11465 S17E25
(-387",-206") 		β/- Dao/--- 0210/---- 06/-- -
11454 S12W84
(928",-189") 		/ / / / -
11457 N20W66
(820",357") 		/ / / / -
11458 N06W33
(518",169") 		/ / / / -

Events not associated with currently named NOAA regions: /C1.5(16:17) C3.3(16:46) C1.0(20:00) C1.6(20:44) C1.4(22:25)

Note: The tabulated data are based on the most recent NOAA/USAF Active Region Summary issued on 21-Apr-2012 00:30 UT , the values to the right of the forward slashes representing yesterdays values or events. Regions with no data in above property fields have decayed and exhibit no spots. The region positions are valid on 21-Apr-2012 23:00 UT .
