| Today's Coronal Hole Properties | |||||
CHIMERA Number |
Centroid [Heliocentric] |
Width [°] |
Area [%] |
< B > [G] |
< Φ > [Mx] |
| 1 | W25N12 (387",83") |
E15-W46 (61) |
9.1 | 1.1 | 1.7e21 |
| 2 | E07N67 (-47",825") |
E90-W44 (134) |
4.1 | 1.1 | 1.5e21 |
| 3 | E26N31 (-363",396") |
E33-E16 (17) |
1.5 | 0.0 | 1.2e19 |
| 4 | E17S27 (-245",-530") |
E22-E11 (11) |
0.5 | -0.8 | -8.5e19 |
| 5 | E03S23 (-46",-481") |
E05-W02 (7) |
0.1 | -0.6 | -1.2e19 |
| 6 | E24S23 (-358",-462") |
E28-E20 (8) |
0.1 | -0.8 | -1.4e19 |
| 7 | E45S34 (-556",-592") |
E47-E40 (7) |
0.1 | -0.7 | -1.3e19 |
| 8 | W27N45 (300",594") |
W24-W30 (6) |
0.1 | -0.5 | -5.5e18 |
| 9 | E47S12 (-682",-274") |
E51-E44 (7) |
0.0 | -1.2 | -1.4e19 |
| 10 | E47N36 (-565",490") |
E51-E43 (8) |
0.0 | -0.8 | -7.9e18 |
|

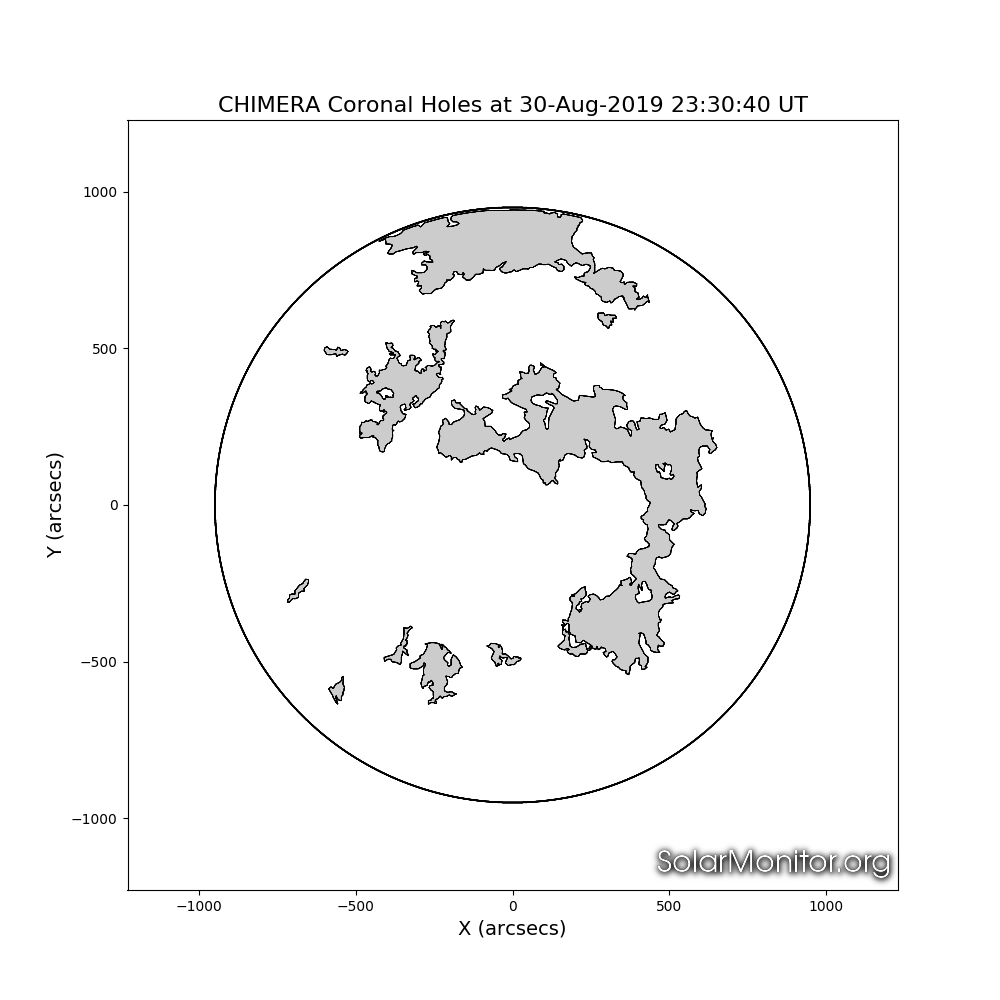

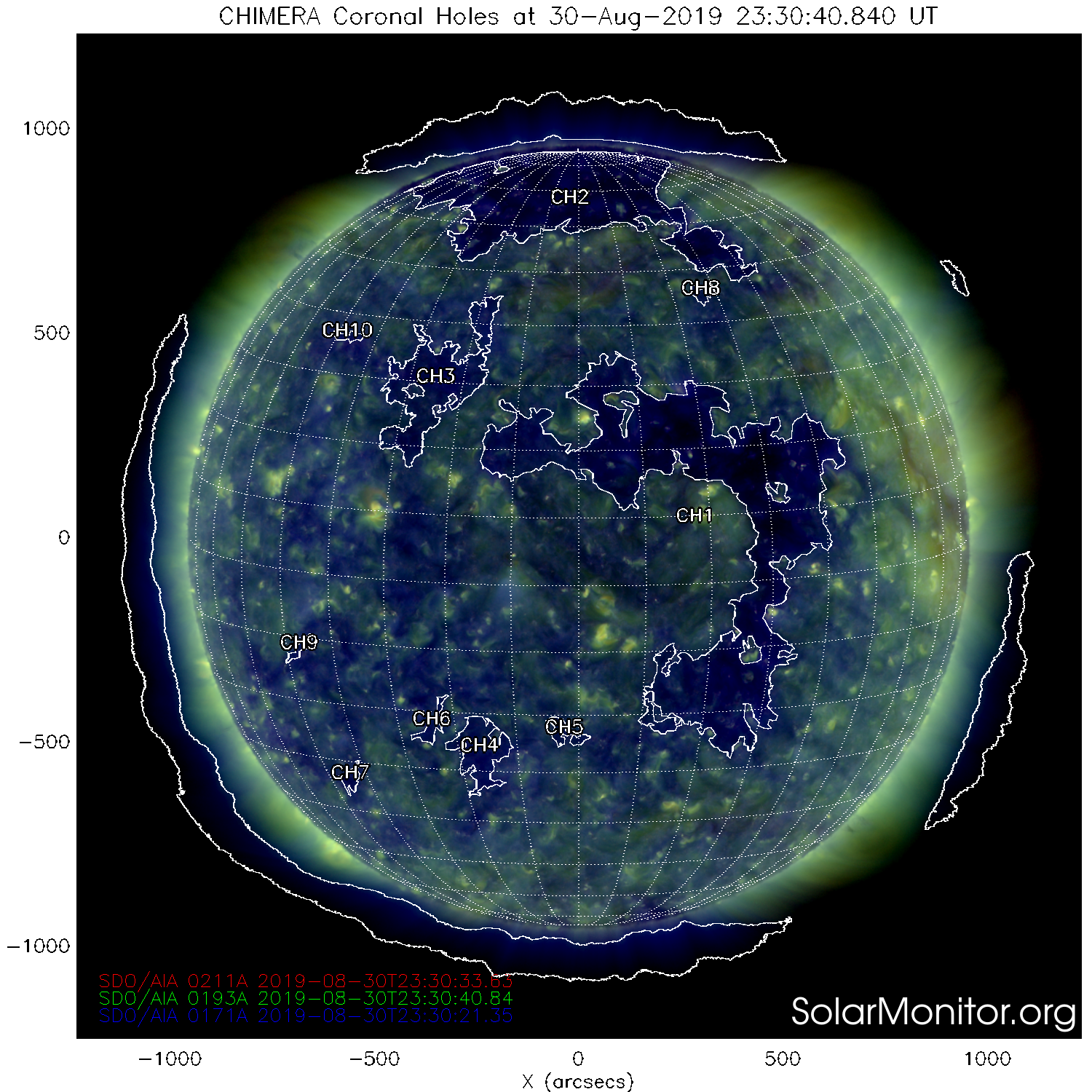

Note: Solar Monitor's coronal hole segmentations are performed by CHIMERA, a copy of which is available at: github.com/TCDSolar/CHIMERA. The operations of the CHIMERA algorithm is described in a peer reviewed paper: arxiv.org/abs/1711.11476. An extensive copy of coronal hole properties are available at: solarmonitor.org/data. The latest positions of the coronal holes are given in heliocentric co-ordinates, and the region positions are valid on 30-Aug-2019 23:40 UT . |
