 14 January 1998
⇐19980113 ⇐Week ⇐Rotation Today Rotation⇒ Week⇒ 19980115⇒

NOAA
3 Active Regions
08131
08132
08135

Flare Forecast
Flare Forecast
MM MotD

Coronal Holes

Main

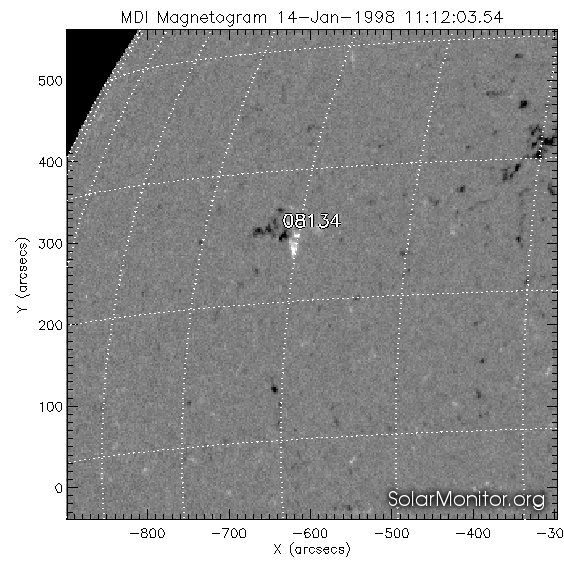

MDI Mag 19980114 11:12 No Time Data Available No Time Data Available

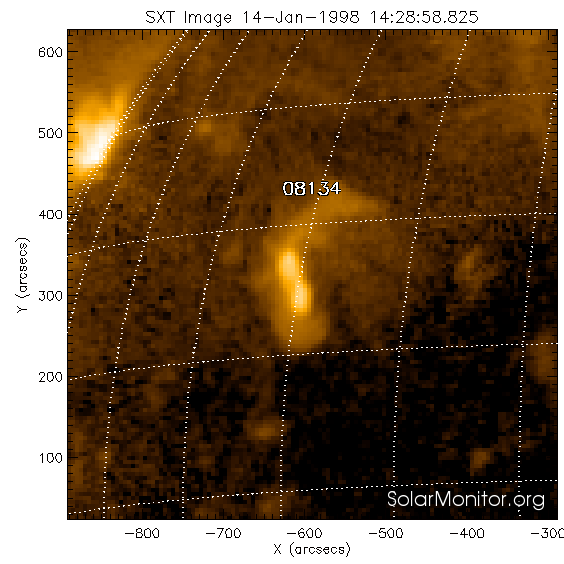

No Time Data Available No Time Data Available SXT 19980114 14:28


Today's/Yesterday's NOAA Active Regions
NOAA Number
Latest
Position
Hale
Class
McIntosh Class
Sunspot Area
[millionths]
Number of Spots
Recent
Flares
08131 S22W23
(343",-290") 		βγ/βγ Dsi/Dri 0150/0190 20/25 C2.3(20:22)
C4.1(15:26)
C1.2(13:08) / -
08132 S19W38
(551",-251") 		β/β Bxo/Bxo 0010/0010 03/04 -
08135 S17E55
(-741",-234") 		α/- Axx/- 0000/- 01/- -

Class (HH:MM) -Today
Class (HH:MM) -Yesterday

Events not associated with currently named NOAA regions: C1.3(10:07)

Note: The tabulated data are based on the most recent NOAA/USAF Active Region Summary issued on 14-Jan-1998 00:30 . The greyed out and light-blue entries are values from the previous day. Slashed cells indicate that the active region has no spots. The latest positions of the active regions are given in both heliographic and heliocentric co-ordinates. The region positions are valid on 14-Jan-1998 23:30 .
