 13 November 1998
⇐19981112 ⇐Week ⇐Rotation Today Rotation⇒ Week⇒ 19981114⇒


Main

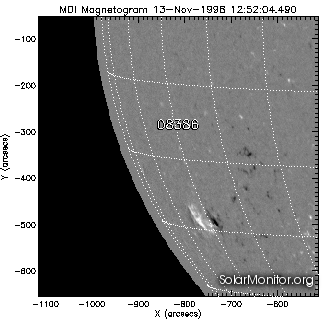

MDI Mag 19981113 12:52 No Time Data Available No Time Data Available
No Time Data Available No Time Data Available No Time Data Available


Today's/Yesterday's NOAA Active Regions
NOAA Number
Latest
Position
Hale
Class
McIntosh Class
Sunspot Area
[millionths]
Number of Spots
Recent
Flares
08377 N22W67
(807",336") 		β/β Cso/Cso 0110/0110 05/05 -
08378 N14W56
(761",202") 		α/α Hsx/Hsx 0120/0130 01/03 -
08383 S16E13
(-205",-307") 		β/β Eao/Cso 0090/0070 16/14 C1.9(03:09)
/ C1.9(07:05)
08384 S28E26
(-366",-483") 		β/βδ Cko/Dkc 0470/0610 05/04 -
08385 N19W57
(750",282") 		β/β Bxo/Bxo 0010/0010 08/06 - / M1.0(05:23)

Class (HH:MM) -Today
Class (HH:MM) -Yesterday

Events not associated with currently named NOAA regions: C5.1(20:55) C1.6(06:20) C1.4(08:16) C3.0(09:50) C2.1(15:14) C1.1(18:41) C3.8(23:48)

Note: The tabulated data are based on the most recent NOAA/USAF Active Region Summary issued on 13-Nov-1998 00:30 . The greyed out and light-blue entries are values from the previous day. Slashed cells indicate that the active region has no spots. The latest positions of the active regions are given in both heliographic and heliocentric co-ordinates. The region positions are valid on 13-Nov-1998 23:30 .
