 28 December 2014
⇐20141227 ⇐Week ⇐Rotation Today Rotation⇒ Week⇒ 20141229⇒


Main Far-side SDO short-wave SDO long-wave
HMI Mag 20141228 21:46 HMI 6173Å 20141228 21:58 GHN Hα 20141226 08:23

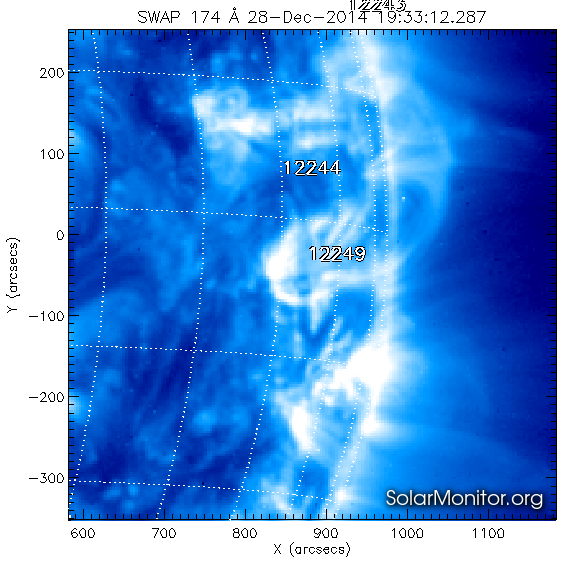

SWAP 174Å 20141228 19:33 AIA 193Å 20141228 22:33 XRT 20141228 06:01
HMI Mag 20141228 21:46 No Time Data Available GONG Farside 20141227 12:00
No Time Data Available AIA 193Å 20141228 22:33 No Time Data Available
HMI Mag 20141228 21:46 AIA 94Å 20141228 22:33 AIA 131Å 20141228 22:33
AIA 171Å 20141228 22:33 AIA 193Å 20141228 22:33 AIA 211Å 20141228 22:33
HMI Mag 20141228 21:46 AIA 304Å 20141228 22:33 AIA 335Å 20141228 22:33

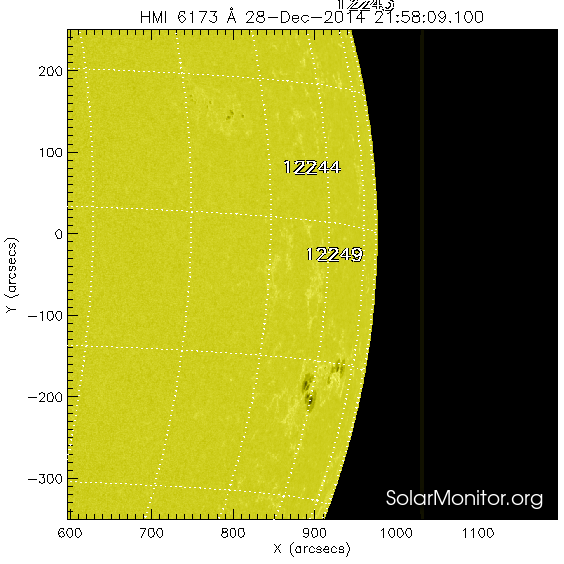

AIA 1600Å 20141228 22:35 AIA 1700Å 20141228 22:35 HMI 6173Å 20141228 21:58


Today's/Yesterday's NOAA Active Regions
NOAA Number
Latest
Position
Hale
Class
McIntosh Class
Sunspot Area
[millionths]
Number of Spots
Recent
Flares
12246 N19W17
(270",358") 		α/α Hsx/Hsx 0080/0060 02/01 -
12247 S22W07
(110",-325") 		α/α Hrx/Hrx 0010/0010 02/01 -
12248 S19E09
(-144",-276") 		βγ/βγ Dso/Dao 0160/0060 18/05 C3.3(17:50)
C2.3(13:33)
C1.7(09:56) / -
12249 S10W74
(924",-157") 		βγ/βγ Dac/Dac 0210/0140 12/08 C1.9(06:00)
- / M2.2(02:03)
12250 N10W54
(779",195") 		β/β Cso/Bxo 0020/0010 05/05 -
12251 S11E45
(-679",-155") 		α/- Hrx/--- 0020/---- 01/-- C1.3(21:08) / -
12252 S19E64
(-830",-299") 		α/- Hsx/--- 0080/---- 01/-- -
12243 N09W91
(962",151") 		/ / / / -
12244 S04W67
(897",-50") 		/α /Axx /0000 /01 -
12245 N09W33
(526",189") 		/α /Axx /0000 /01 -

Class (HH:MM) -Today
Class (HH:MM) -Yesterday

Events not associated with currently named NOAA regions: C1.3(14:59)

Note: The tabulated data are based on the most recent NOAA/USAF Active Region Summary issued on 28-Dec-2014 00:30 UT . The greyed out and light-blue entries are values from the previous day. Slashed cells indicate that the active region has no spots. The latest positions of the active regions are given in both heliographic and heliocentric co-ordinates. The region positions are valid on 28-Dec-2014 22:35 UT .
