 10 June 2021
⇐20210609 ⇐Week ⇐Rotation Today Rotation⇒ Week⇒ 20210611⇒

NOAA
2 Active Regions
12829
12832

Flare Forecast
Flare Prediction System
MM MotD

Coronal Holes

Main Far-side SDO short-wave SDO long-wave
HMI Mag 20210610 21:58 HMI 6173Å 20210610 22:46 GHN Hα 20210610 22:57
SWAP 174Å 20210610 21:49 AIA 193Å 20210610 23:24 XRT 20210610 06:10
HMI Mag 20210610 21:58 No Time Data Available GONG Farside 20210609 12:00
No Time Data Available AIA 193Å 20210610 23:24 No Time Data Available

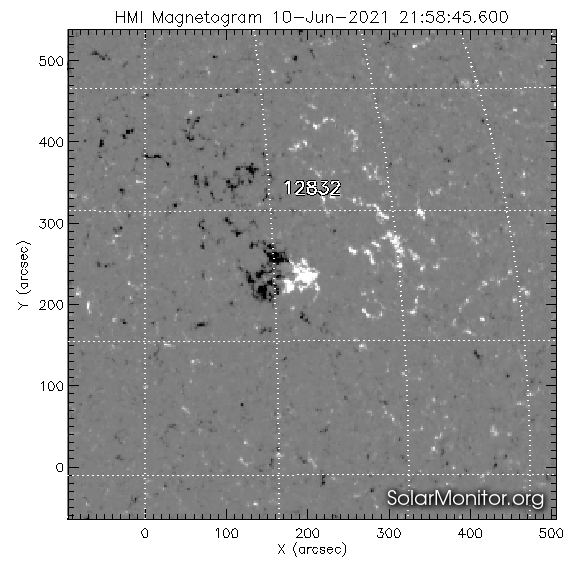

HMI Mag 20210610 21:58 AIA 94Å 20210610 23:24 AIA 131Å 20210610 23:27

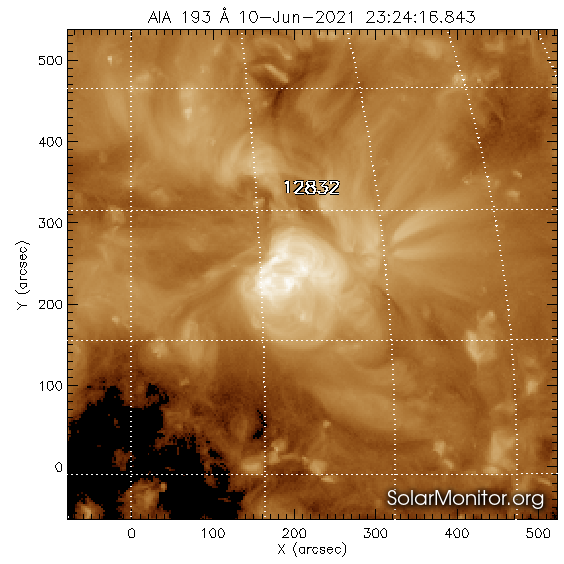

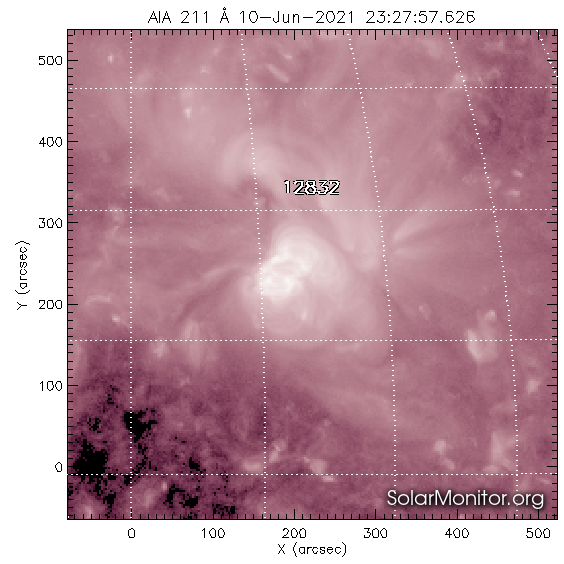

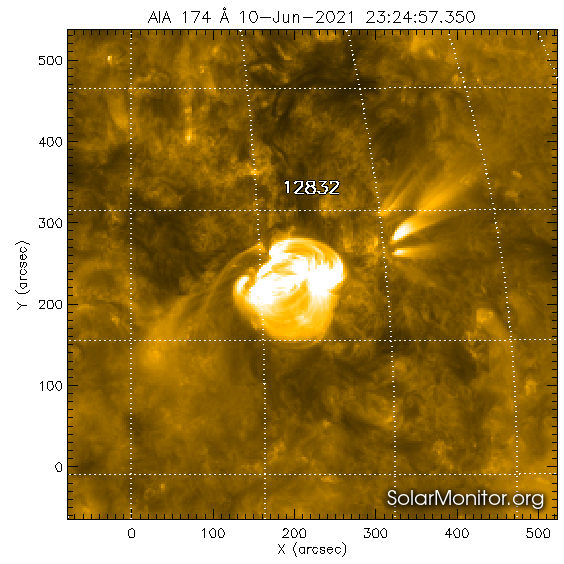

AIA 171Å 20210610 23:24 AIA 193Å 20210610 23:24 AIA 211Å 20210610 23:27

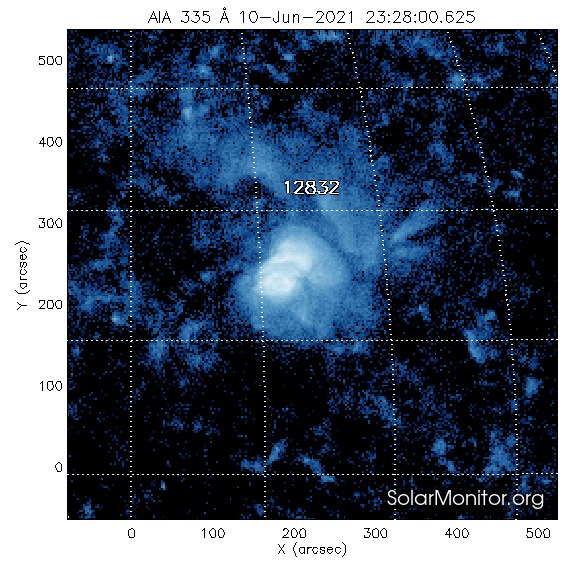

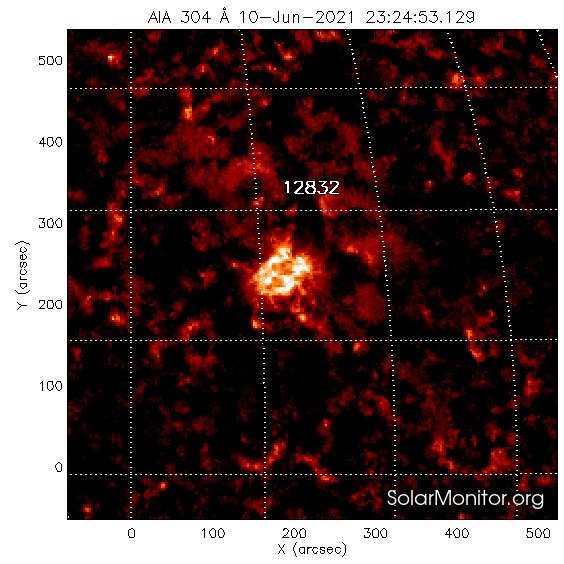

HMI Mag 20210610 21:58 AIA 304Å 20210610 23:24 AIA 335Å 20210610 23:28

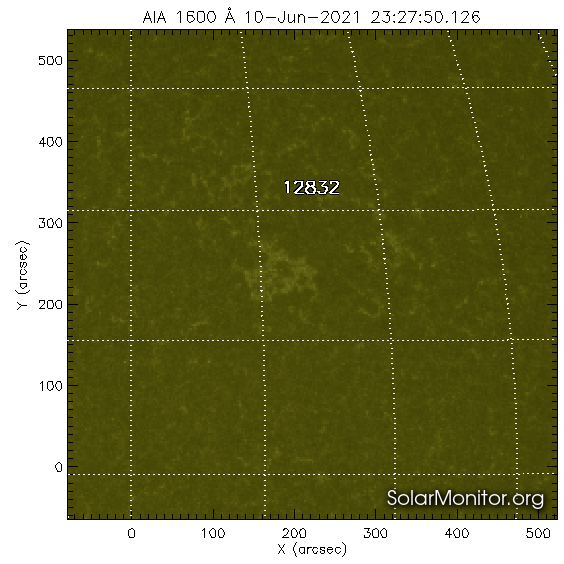

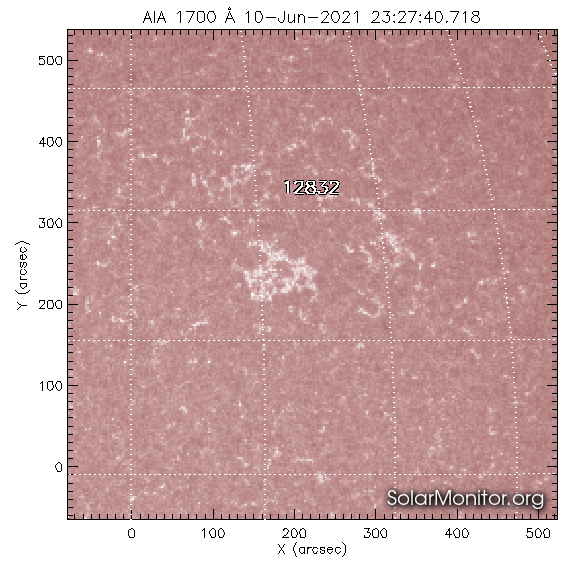

AIA 1600Å 20210610 23:27 AIA 1700Å 20210610 23:27 HMI 6173Å 20210610 22:46


Today's/Yesterday's NOAA Active Regions
NOAA Number
Latest
Position
Hale
Class
McIntosh Class
Sunspot Area
[millionths]
Number of Spots
Recent
Flares
12829 S20W53
(710",-328") 		β/β Dso/Dso 0020/0050 03/12 -
12832 N15W14
(221",237") 		β/- Bxo/--- 0010/---- 04/-- -

Class (HH:MM) -Today
Class (HH:MM) -Yesterday

Events not associated with currently named NOAA regions: C1.1(05:59) C3.7(08:44) C1.7(11:50)

Note: The tabulated data are based on the most recent NOAA/USAF Active Region Summary issued on 10-Jun-2021 00:30 UT . The greyed out and light-blue entries are values from the previous day. Slashed cells indicate that the active region has no spots. The latest positions of the active regions are given in both heliographic and heliocentric co-ordinates. The region positions are valid on 10-Jun-2021 23:30 UT .
