 21 January 2022
⇐20220120 ⇐Week ⇐Rotation Today Rotation⇒ Week⇒ 20220122⇒


Main Far-side SDO short-wave SDO long-wave

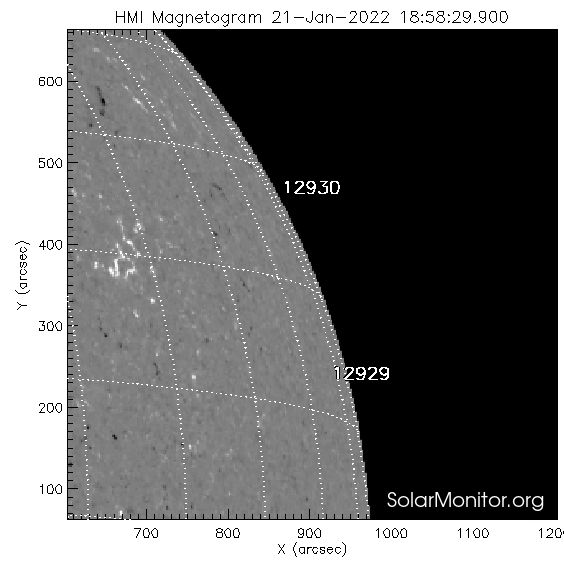

HMI Mag 20220121 18:58 HMI 6173Å 20220121 19:46 No Time Data Available

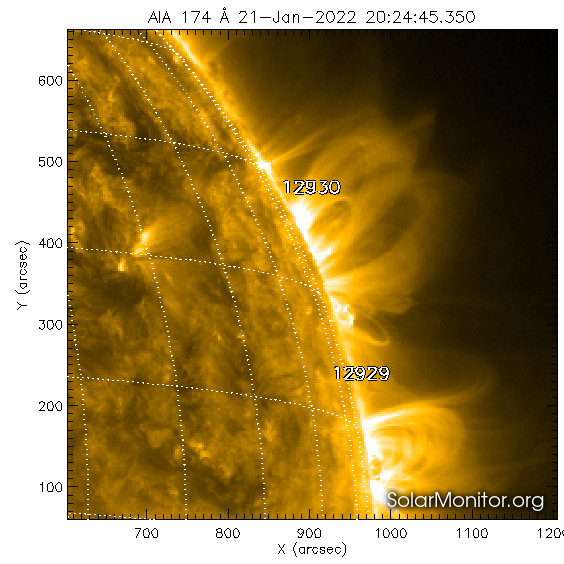

SWAP 174Å 20220121 18:42 AIA 193Å 20220121 20:24 No Time Data Available

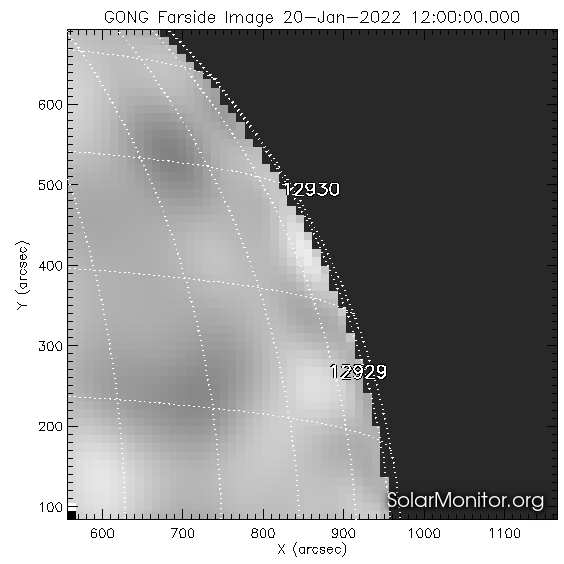

HMI Mag 20220121 18:58 No Time Data Available GONG Farside 20220120 12:00
No Time Data Available AIA 193Å 20220121 20:24 No Time Data Available

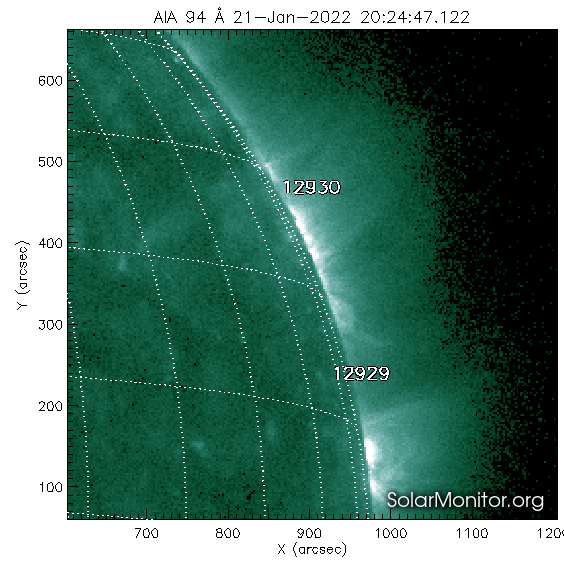

HMI Mag 20220121 18:58 AIA 94Å 20220121 20:24 AIA 131Å 20220121 20:24
AIA 171Å 20220121 20:24 AIA 193Å 20220121 20:24 AIA 211Å 20220121 20:24

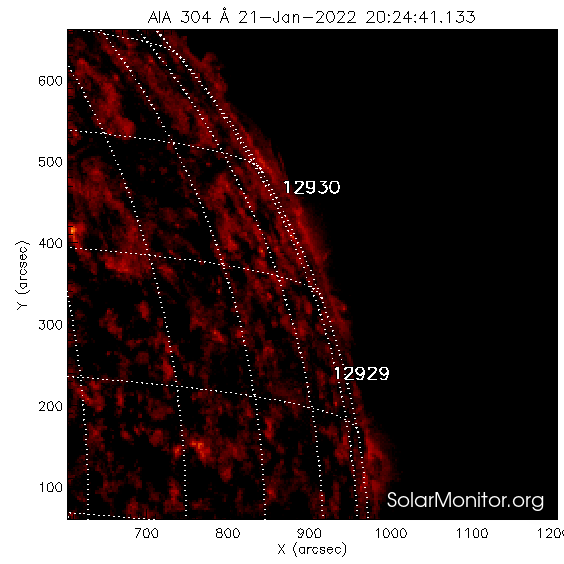

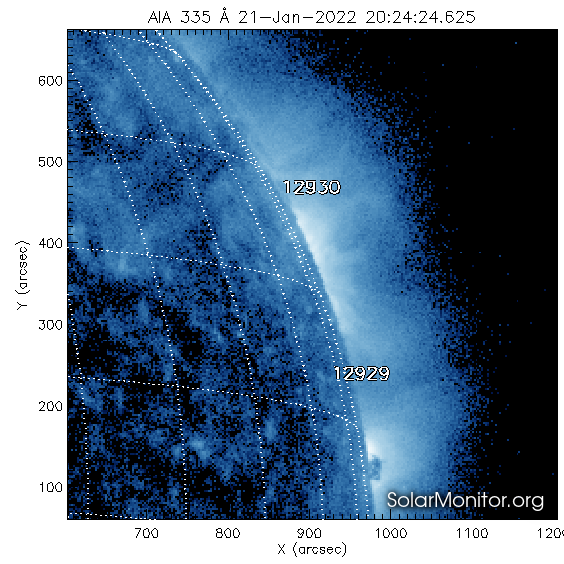

HMI Mag 20220121 18:58 AIA 304Å 20220121 20:24 AIA 335Å 20220121 20:24

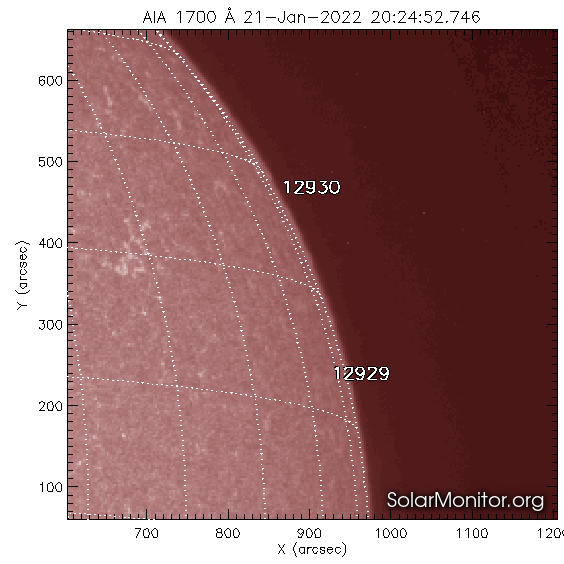

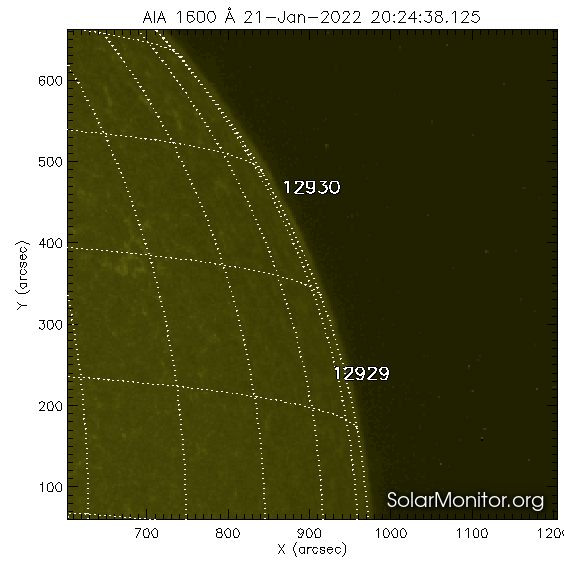

AIA 1600Å 20220121 20:24 AIA 1700Å 20220121 20:24 HMI 6173Å 20220121 19:46


Today's/Yesterday's NOAA Active Regions
NOAA Number
Latest
Position
Hale
Class
McIntosh Class
Sunspot Area
[millionths]
Number of Spots
Recent
Flares
12927 S21W91
(909",-349") 		α/α Axx/Hsx 0001/0030 01/01 -
12929 N08W91
(964",133") 		β/β Dao/Dao 0080/0230 02/02 -
12930 N22W91
(903",362") 		β/β Dao/Dao 0100/0210 02/04 -
12933 S22W61
(792",-324") 		β/β Cao/Cao 0080/0100 04/10 -
12934 S24E57
(-748",-351") 		α/- Hsx/--- 0090/---- 01/-- -
12932 N32W19
(270",586") 		/ / / / -

Class (HH:MM) -Today
Class (HH:MM) -Yesterday

Events not associated with currently named NOAA regions: C1.2(02:08) C1.1(02:09) C1.6(02:31) M5.5(05:41)

Note: The tabulated data are based on the most recent NOAA/USAF Active Region Summary issued on 21-Jan-2022 00:30 UT . The greyed out and light-blue entries are values from the previous day. Slashed cells indicate that the active region has no spots. The latest positions of the active regions are given in both heliographic and heliocentric co-ordinates. The region positions are valid on 21-Jan-2022 20:30 UT .
