3 August 2024
⇐20240802 ⇐Week ⇐Rotation Today Rotation⇒ Week⇒ 20240804⇒

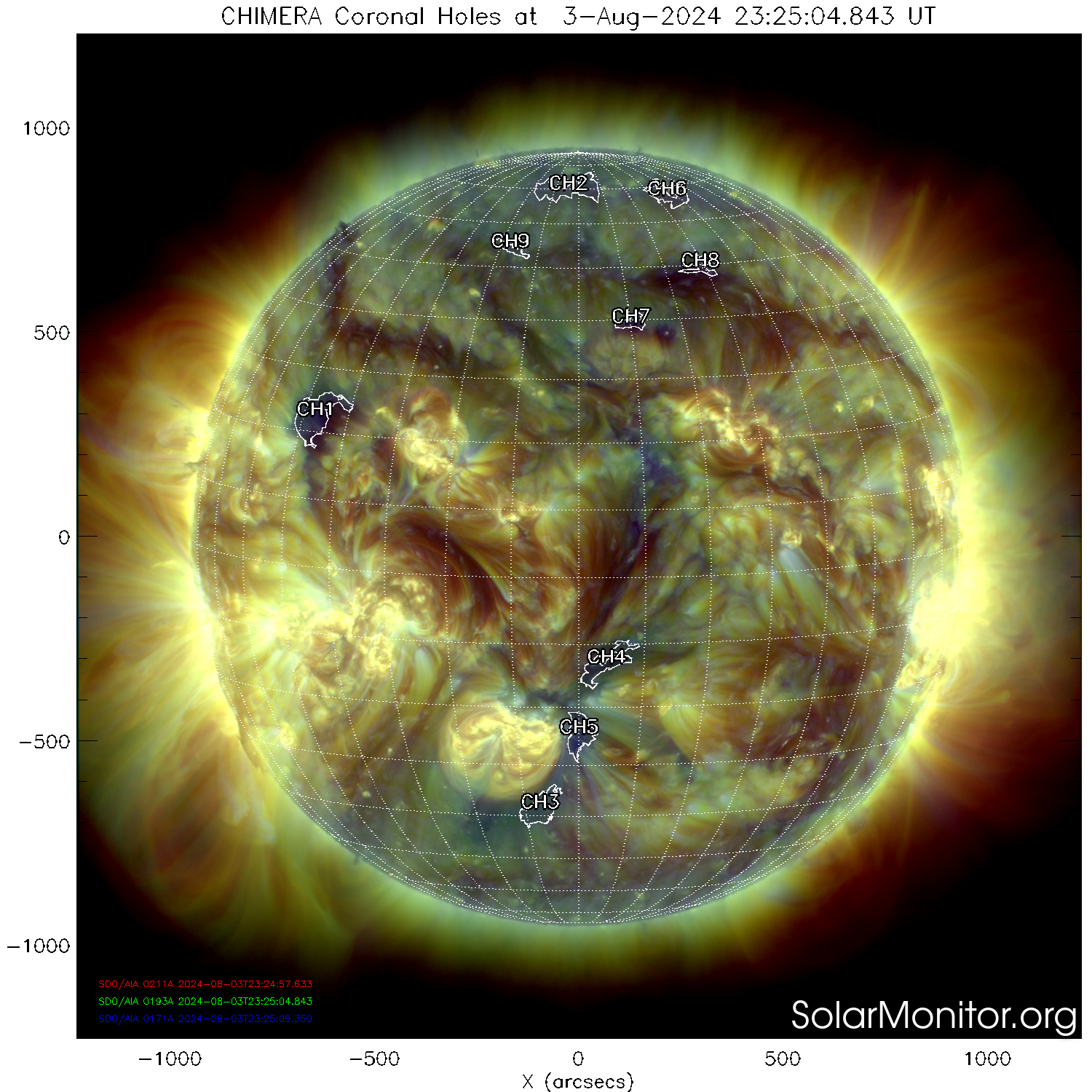

Today's Coronal Hole Properties
CHIMERA Number
Centroid
[Heliocentric]
Width
[°]
Area
[%]
< B >
[G]
< Φ >
[Mx]
1 E47N23
(-642",300") 		E51-E40
(11) 		0.3 8.4 5.6e20
2 E08N70
(-47",850") 		E18-W09
(27) 		0.2 -0.5 -4.0e19
3 E08S39
(-99",-664") 		E11-E03
(8) 		0.2 -1.1 -4.2e19
4 W06S13
(89",-312") 		W00-W09
(9) 		0.2 -21.6 -6.0e20
5 W01S24
(8",-481") 		5
(3.0e03) 		-25.4 30.1 9.0e20
6 W37N67
(221",837") 		W29-W43
(14) 		0.1 0.5 2.2e19
7 W10N40
(132",525") 		W07-W13
(6) 		0.1 4.8 5.2e19
8 W29N50
(300",661") 		W23-W32
(9) 		0.1 -0.9 -1.2e19
9 E18N54
(-168",709") 		E23-E12
(11) 		0.0 -1.8 -2.0e19

Note: Solar Monitor's coronal hole segmentations are performed by CHIMERA, a copy of which is available at: github.com/TCDSolar/CHIMERA.

The operations of the CHIMERA algorithm is described in a peer reviewed paper: arxiv.org/abs/1711.11476.

An extensive copy of coronal hole properties are available at: solarmonitor.org/data.

The latest positions of the coronal holes are given in heliocentric co-ordinates, and the region positions are valid on 3-Aug-2024 23:30 UT .
