 13 September 2000
⇐20000912 ⇐Week ⇐Rotation Today Rotation⇒ Week⇒ 20000914⇒

NOAA
3 Active Regions
09161
09162
09163

Flare Forecast
Flare Forecast
MM MotD

Coronal Holes

Main
MDI Mag 20000913 12:47 No Time Data Available No Time Data Available

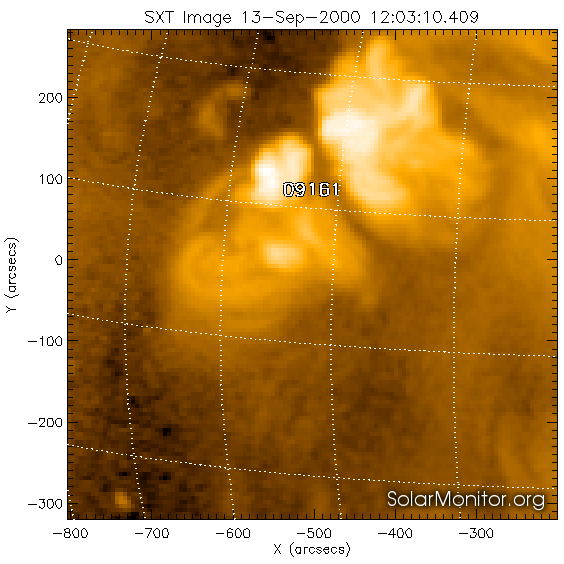

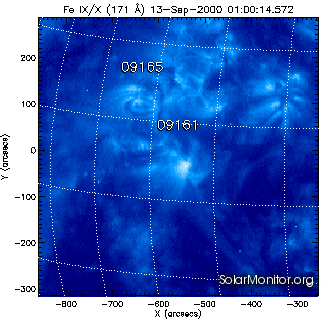

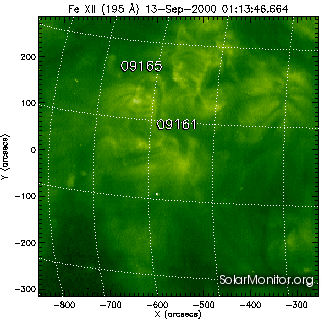

EIT 171Å 20000913 01:00 EIT 195Å 20000913 01:13 SXT 20000913 12:03


Today's/Yesterday's NOAA Active Regions
NOAA Number
Latest
Position
Hale
Class
McIntosh Class
Sunspot Area
[millionths]
Number of Spots
Recent
Flares
09161 N05E24
(-384",-26") 		α/β Axx/Cro 0000/0010 01/02 -
09162 S34W49
(592",-589") 		β/- Cro/- 0020/- 04/- -
09163 S19W23
(350",-409") 		β/- Cso/- 0010/- 03/- -

Class (HH:MM) -Today
Class (HH:MM) -Yesterday

Events not associated with currently named NOAA regions: C2.2(14:19) C1.6(18:03) C1.1(00:45) C4.6(08:55) M1.0(11:31)

Note: The tabulated data are based on the most recent NOAA/USAF Active Region Summary issued on 13-Sep-2000 00:30 . The greyed out and light-blue entries are values from the previous day. Slashed cells indicate that the active region has no spots. The latest positions of the active regions are given in both heliographic and heliocentric co-ordinates. The region positions are valid on 13-Sep-2000 23:30 .
