 29 September 2006
⇐20060928 ⇐Week ⇐Rotation Today Rotation⇒ Week⇒ 20060930⇒


Main

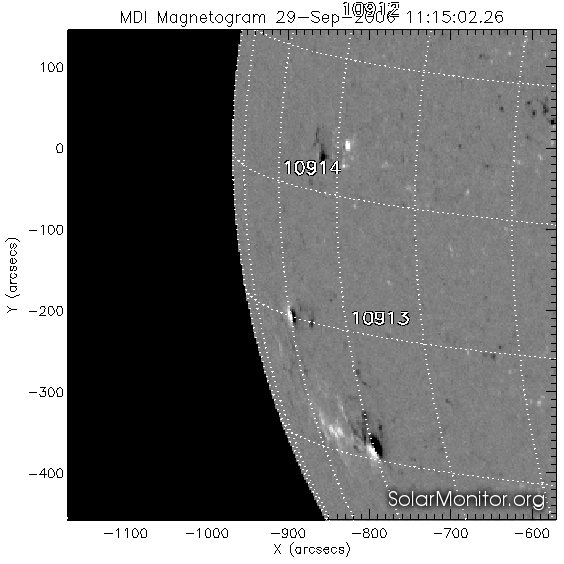

MDI Mag 20060929 11:15 MDI Cont 20060929 06:42 No Time Data Available

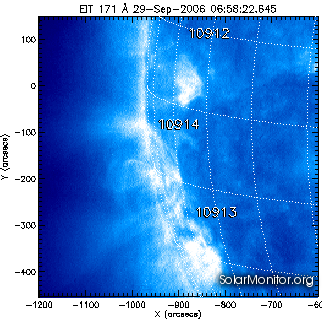

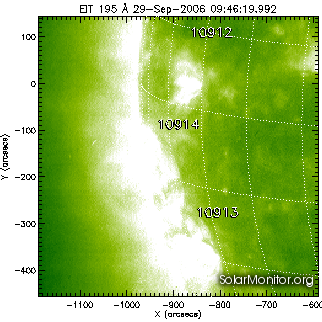

EIT 171Å 20060929 06:58 EIT 195Å 20060929 09:46 SXI X-rays 20060929 00:00


Today's/Yesterday's NOAA Active Regions
NOAA Number
Latest
Position
Hale
Class
McIntosh Class
Sunspot Area
[millionths]
Number of Spots
Recent
Flares
10912 N06E51
(-735",24") 		β/- Bxo/--- 0040/---- 03/-- -
10913 S18E54
(-732",-357") 		α/- Hsx/--- 0060/---- 02/-- -
10914 S07E61
(-825",-171") 		α/- Axx/--- 0020/---- 01/-- -
10910 S08W91
(939",-129") 		/ / / / -
10911 N07E29
(-458",12") 		/α /Axx /0020 /01 -

Class (HH:MM) -Today
Class (HH:MM) -Yesterday

Events not associated with currently named NOAA regions: None

Note: The tabulated data are based on the most recent NOAA/USAF Active Region Summary issued on 29-Sep-2006 00:30 UT . The greyed out and light-blue entries are values from the previous day. Slashed cells indicate that the active region has no spots. The latest positions of the active regions are given in both heliographic and heliocentric co-ordinates. The region positions are valid on 29-Sep-2006 09:55 UT .
