 21 March 2012
⇐20120320 ⇐Week ⇐Rotation Today Rotation⇒ Week⇒ 20120322⇒

NOAA
7 Active Regions
11432
11433
11434
11435
11438
11439
11440

Flare Forecast
Flare Forecast
MM MotD

Coronal Holes

Main Far-side SDO short-wave SDO long-wave

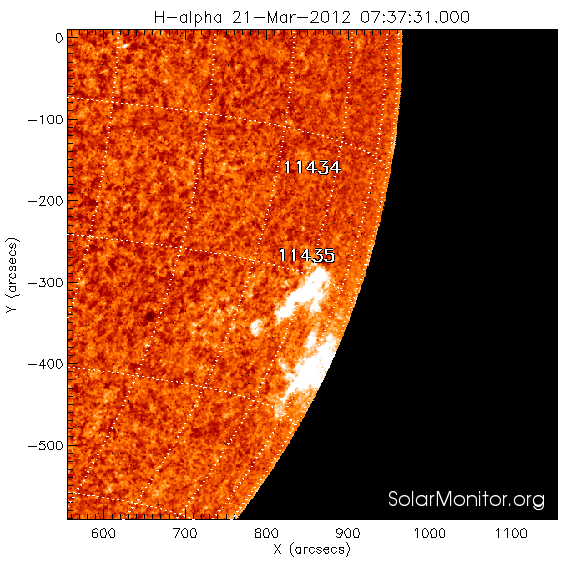

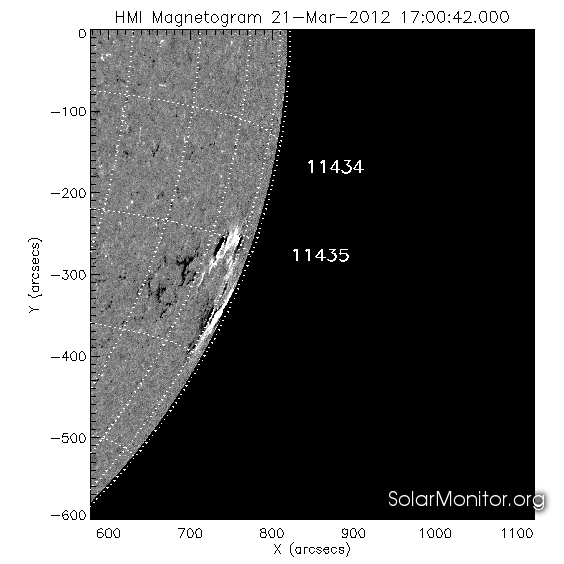

HMI Mag 20120321 17:00 No Time Data Available GHN Hα 20120321 07:37

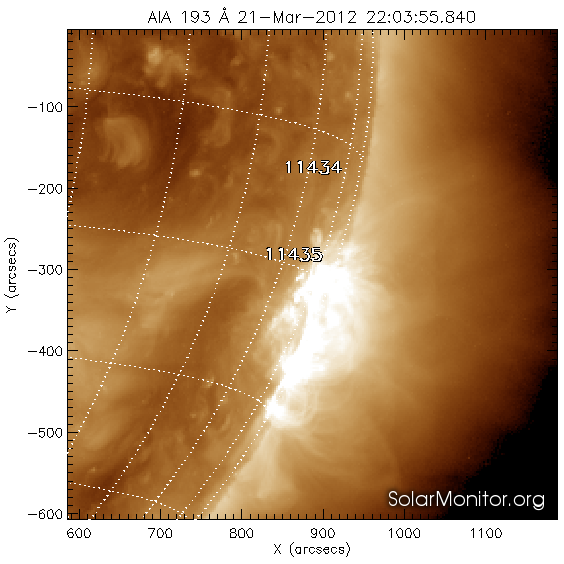

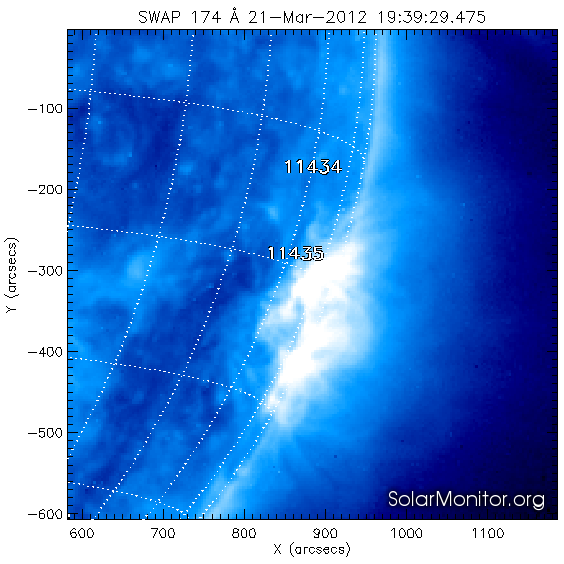

SWAP 174Å 20120321 19:39 AIA 193Å 20120321 22:03 XRT 20120321 00:00

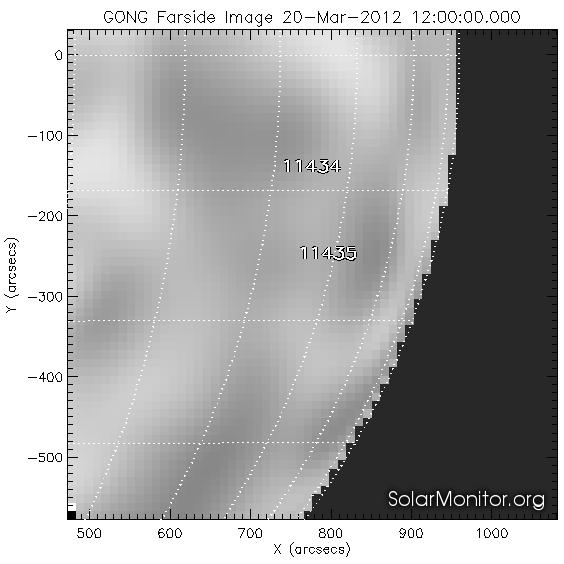

HMI Mag 20120321 17:00 SOLIS Mag 20120321 20:13 GONG Farside 20120320 12:00
No Time Data Available AIA 193Å 20120321 22:03 No Time Data Available

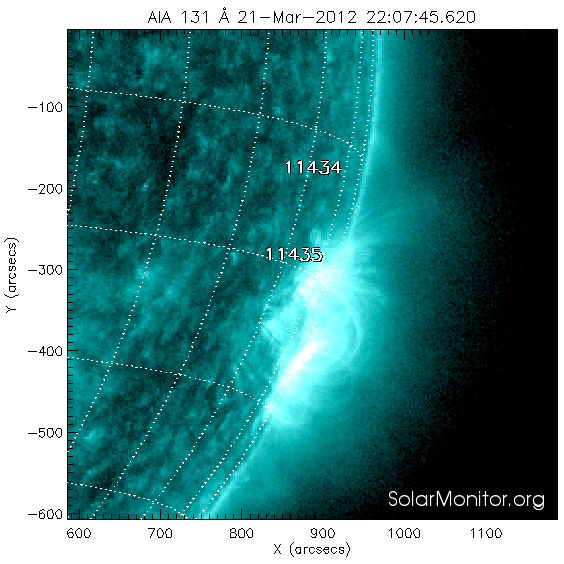

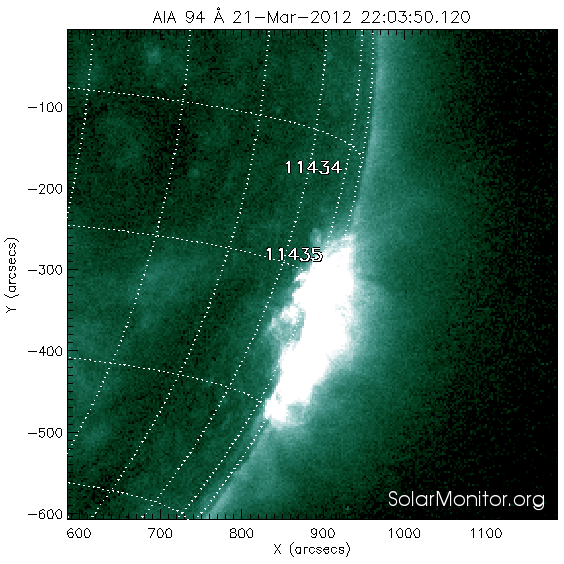

HMI Mag 20120321 17:00 AIA 94Å 20120321 22:03 AIA 131Å 20120321 22:07

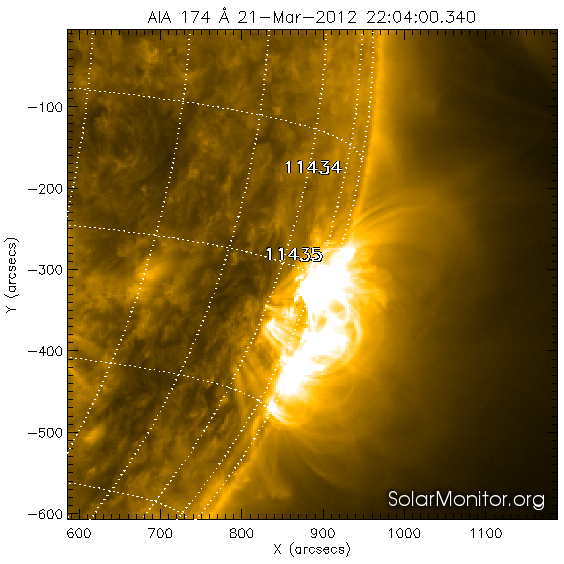

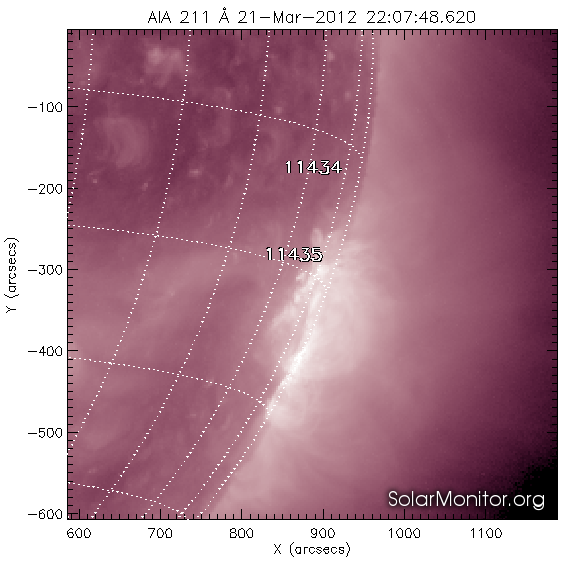

AIA 171Å 20120321 22:04 AIA 193Å 20120321 22:03 AIA 211Å 20120321 22:07

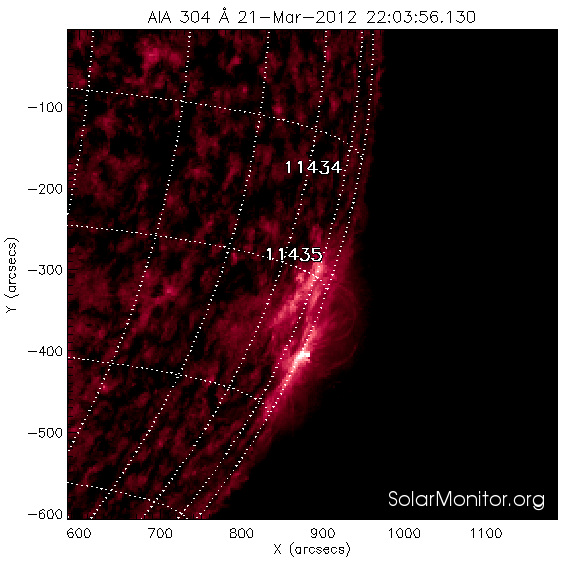

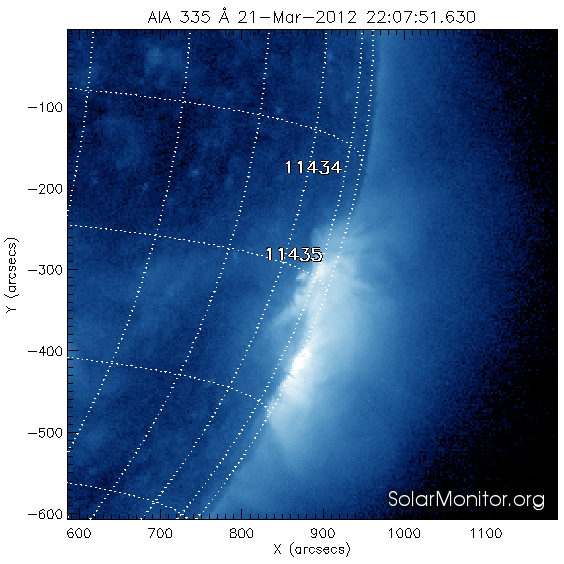

HMI Mag 20120321 17:00 AIA 304Å 20120321 22:03 AIA 335Å 20120321 22:07

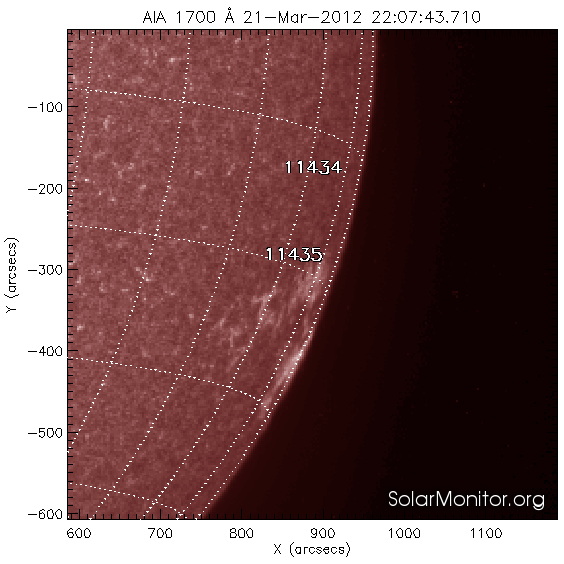

AIA 1600Å 20120321 22:07 AIA 1700Å 20120321 22:07 No Time Data Available


Today's/Yesterday's NOAA Active Regions
NOAA Number
Latest
Position
Hale
Class
McIntosh Class
Sunspot Area
[millionths]
Number of Spots
Recent
Flares
11432 N14W91
(919",229") 		α/α Axx/Axx 0010/0010 01/01 - / C1.1(23:43)
11433 N11W70
(876",141") 		β/β Cro/Cso 0030/0070 02/04 -
11434 S20W80
(877",-340") 		β/β Cso/Cao 0120/0090 04/06 -
11435 S26W88
(851",-416") 		β/β Dso/Dso 0160/0150 03/07 -
11438 S15E55
(-752",-307") 		α/α Hsx/Hsx 0050/0050 02/02 -
11439 N25W91
(859",399") 		β/β Cro/Cro 0030/0030 02/02 -
11440 S26W38
(526",-495") 		βγδ/- Dai/--- 0030/---- 05/-- -

Class (HH:MM) -Today
Class (HH:MM) -Yesterday

Events not associated with currently named NOAA regions: C2.9(12:38) C1.2(13:54) C1.1(15:42)

Note: The tabulated data are based on the most recent NOAA/USAF Active Region Summary issued on 21-Mar-2012 00:30 UT . The greyed out and light-blue entries are values from the previous day. Slashed cells indicate that the active region has no spots. The latest positions of the active regions are given in both heliographic and heliocentric co-ordinates. The region positions are valid on 21-Mar-2012 22:00 UT .
