 6 September 2012
⇐20120905 ⇐Week ⇐Rotation Today Rotation⇒ Week⇒ 20120907⇒

NOAA
6 Active Regions
11559
11560
11562
11564
11565
11566

Flare Forecast
Flare Forecast
MM MotD

Coronal Holes

Main Far-side SDO short-wave SDO long-wave

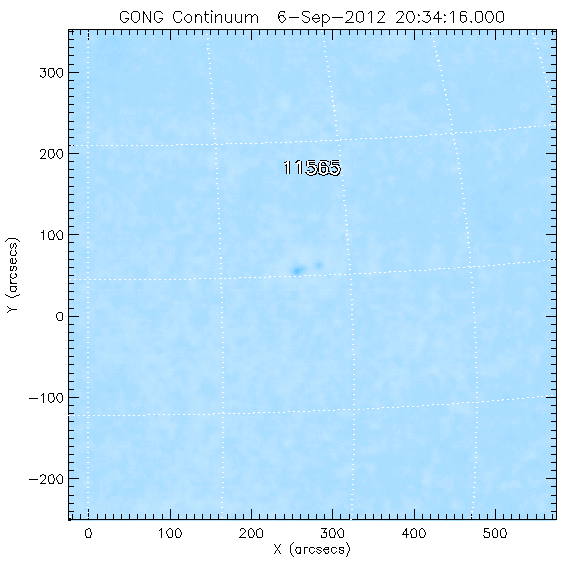

No Time Data Available GONG+ Continuum 20120906 20:34 GHN Hα 20120906 07:55

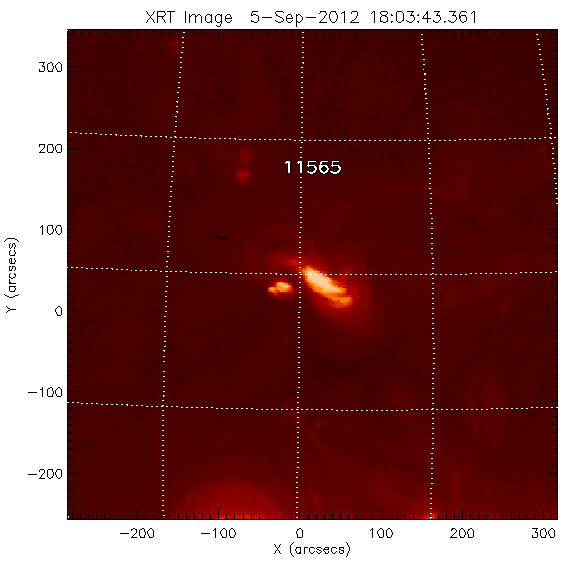

SWAP 174Å 20120906 20:07 AIA 193Å 20120906 20:57 XRT 20120905 18:03
No Time Data Available No Time Data Available No Time Data Available
No Time Data Available AIA 193Å 20120906 20:57 No Time Data Available
No Time Data Available AIA 94Å 20120906 20:58 AIA 131Å 20120906 21:01

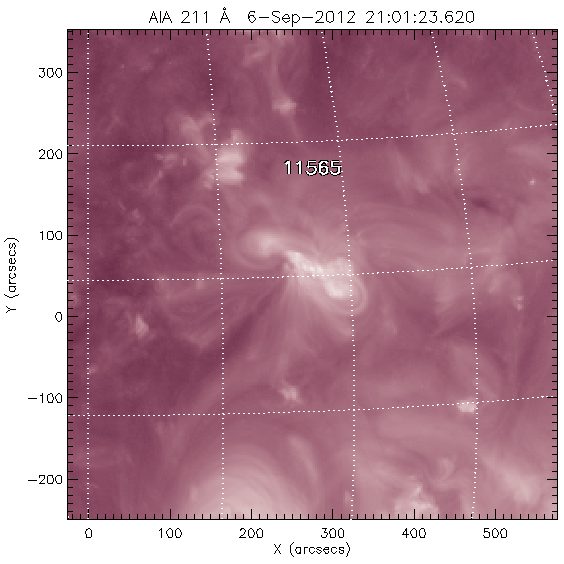

AIA 171Å 20120906 20:55 AIA 193Å 20120906 20:57 AIA 211Å 20120906 21:01
No Time Data Available AIA 304Å 20120906 20:58 AIA 335Å 20120906 21:01
AIA 1600Å 20120906 21:01 AIA 1700Å 20120906 21:01 No Time Data Available


Today's/Yesterday's NOAA Active Regions
NOAA Number
Latest
Position
Hale
Class
McIntosh Class
Sunspot Area
[millionths]
Number of Spots
Recent
Flares
11559 N13W69
(864",171") 		βγδ/βγδ Bxo/Dso 0010/0050 03/07 -
11560 N04W72
(900",30") 		βγδ/βγδ Eai/Eai 0230/0170 13/15 -
11562 S21W49
(669",-408") 		βγδ/βγδ Dso/Dso 0070/0050 05/06 -
11564 S14W13
(207",-337") 		βγδ/βγδ Esi/Esi 0270/0160 32/29 -
11565 N10W19
(305",56") 		βγδ/βγδ Dso/Dso 0040/0080 04/05 -
11566 N22E36
(-518",267") 		αγδ/αγδ Hsx/Hax 0060/0060 01/01 -

Class (HH:MM) -Today
Class (HH:MM) -Yesterday

Events not associated with currently named NOAA regions: None

Note: The tabulated data are based on the most recent NOAA/USAF Active Region Summary issued on 6-Sep-2012 00:30 UT . The greyed out and light-blue entries are values from the previous day. Slashed cells indicate that the active region has no spots. The latest positions of the active regions are given in both heliographic and heliocentric co-ordinates. The region positions are valid on 6-Sep-2012 21:00 UT .
