 26 March 2014
⇐20140325 ⇐Week ⇐Rotation Today Rotation⇒ Week⇒ 20140327⇒


Main Far-side SDO short-wave SDO long-wave

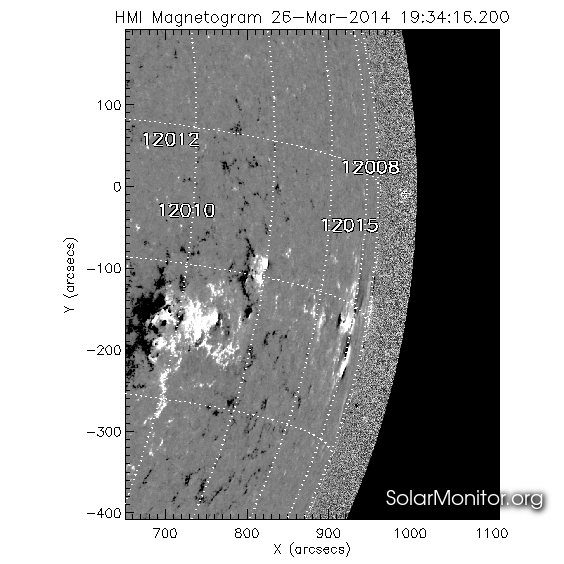

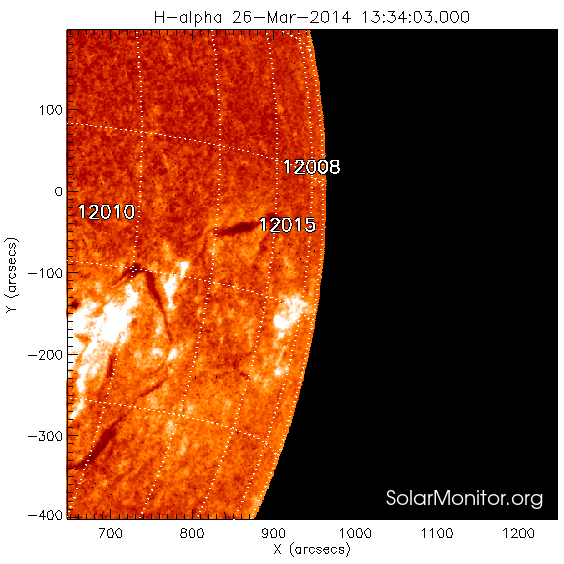

HMI Mag 20140326 19:34 HMI 6173Å 20140326 19:34 GHN Hα 20140326 13:34

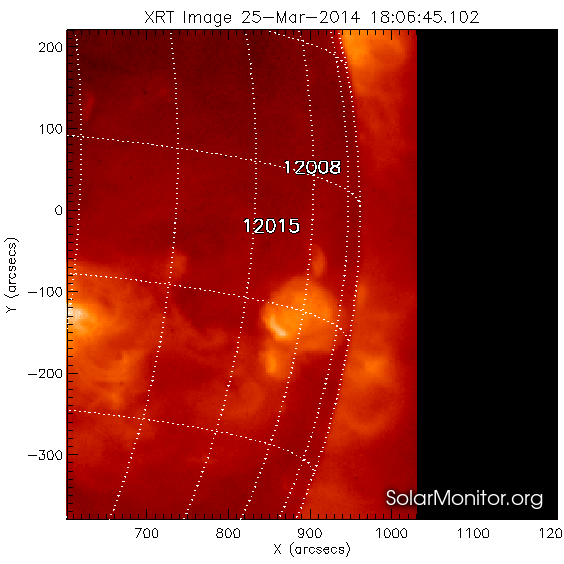

SWAP 174Å 20140326 10:27 AIA 193Å 20140326 20:33 XRT 20140325 18:06
HMI Mag 20140326 19:34 No Time Data Available GONG Farside 20140325 12:00
No Time Data Available AIA 193Å 20140326 20:33 No Time Data Available

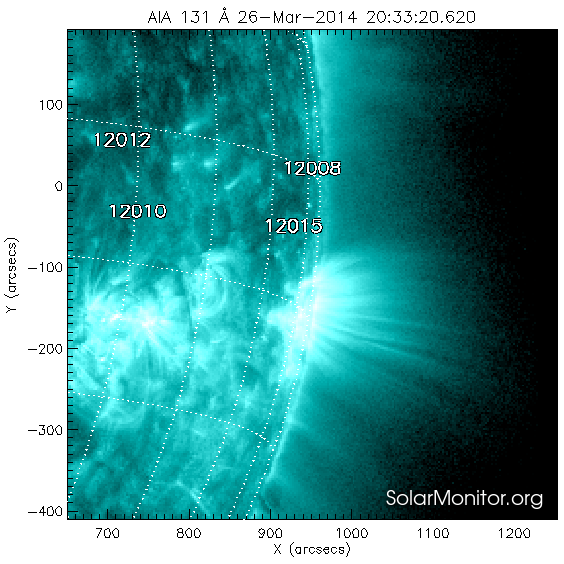

HMI Mag 20140326 19:34 AIA 94Å 20140326 20:33 AIA 131Å 20140326 20:33

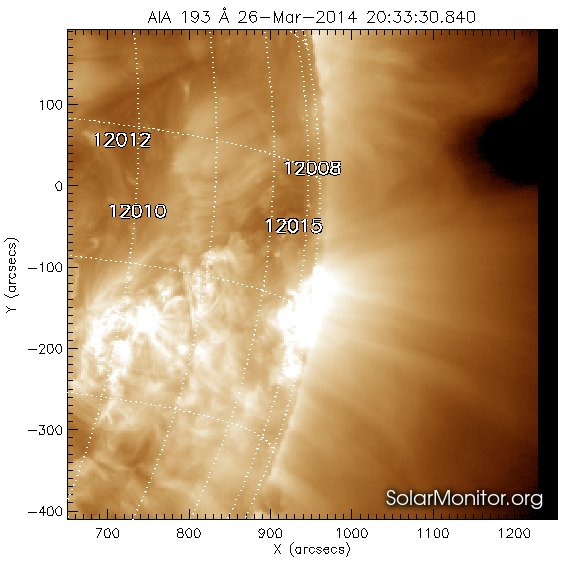

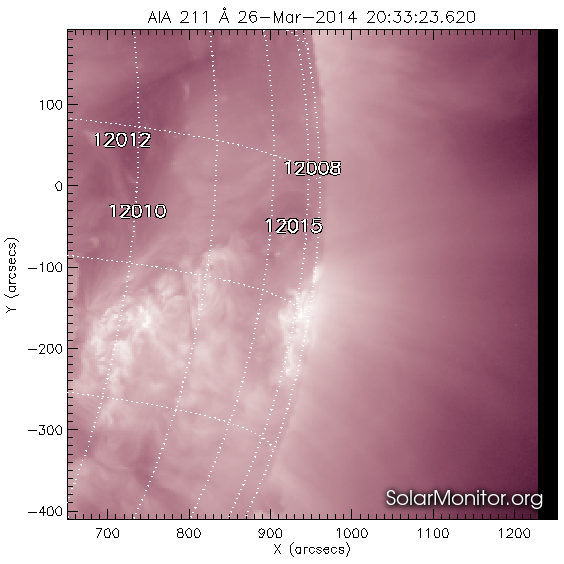

AIA 171Å 20140326 20:33 AIA 193Å 20140326 20:33 AIA 211Å 20140326 20:33

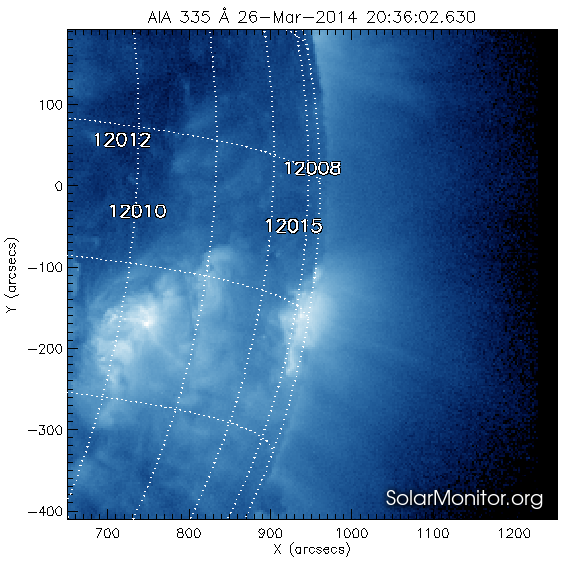

HMI Mag 20140326 19:34 AIA 304Å 20140326 20:33 AIA 335Å 20140326 20:36

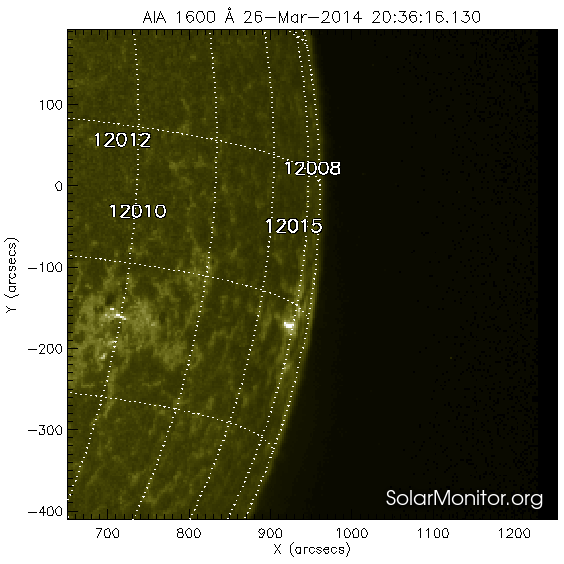

AIA 1600Å 20140326 20:36 AIA 1700Å 20140326 20:36 HMI 6173Å 20140326 19:34


Today's/Yesterday's NOAA Active Regions
NOAA Number
Latest
Position
Hale
Class
McIntosh Class
Sunspot Area
[millionths]
Number of Spots
Recent
Flares
12010 S14W52
(737",-163") 		βγ/βγδ Dai/Dac 0170/0230 17/22 C1.1(09:57)
/ C1.1(08:05)
C1.2(06:07)
12013 N15W37
(560",336") 		α/α Axx/Hrx 0010/0010 01/01 -
12014 S13W17
(275",-109") 		βγ/βγ Esc/Esc 0240/0210 22/16 C1.5(10:59) / -
12015 S12W81
(929",-181") 		βδ/βδ Dac/Dac 0070/0060 01/02 - / C1.4(05:21)
12017 N10E08
(-132",278") 		β/βγ Dsi/Dao 0130/0130 09/06 -
12018 N02E13
(-217",144") 		β/β Cro/Bxo 0030/0010 04/03 -
12007 N11W91
(943",180") 		/ / / / -
12008 S07W87
(952",-110") 		/ / / / -
12012 S09W49
(718",-75") 		/ / / / -
12016 S28W47
(622",-380") 		/α /Axx /0010 /01 -

Class (HH:MM) -Today
Class (HH:MM) -Yesterday

Events not associated with currently named NOAA regions: C1.4(03:18) C1.0(23:45)

Note: The tabulated data are based on the most recent NOAA/USAF Active Region Summary issued on 26-Mar-2014 00:30 UT . The greyed out and light-blue entries are values from the previous day. Slashed cells indicate that the active region has no spots. The latest positions of the active regions are given in both heliographic and heliocentric co-ordinates. The region positions are valid on 26-Mar-2014 20:35 UT .
