16 August 2024
20240815 Week Rotation Today Rotation Week 20240817


Main Far-side SDO short-wave SDO long-wave

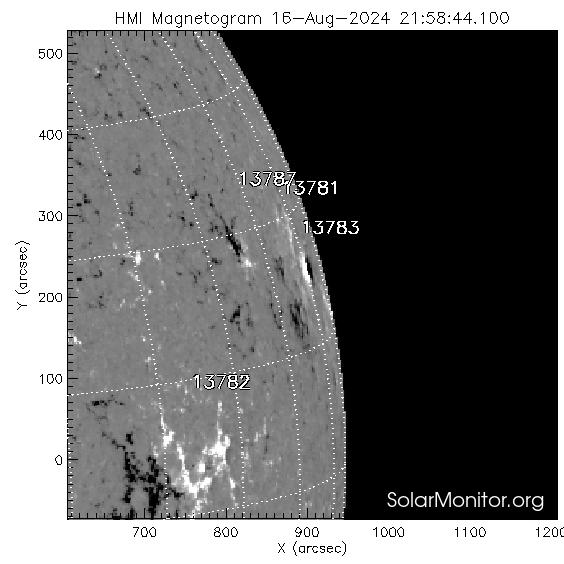

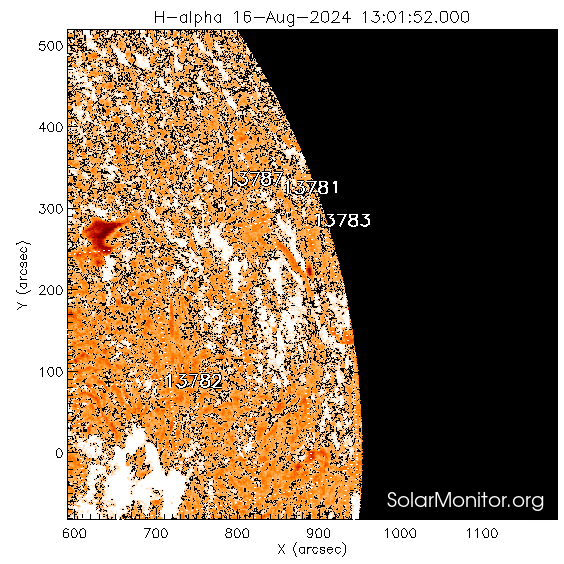

HMI Mag 20240816 21:58 HMI 6173Å 20240816 14:34 GHN Hα 20240816 13:01

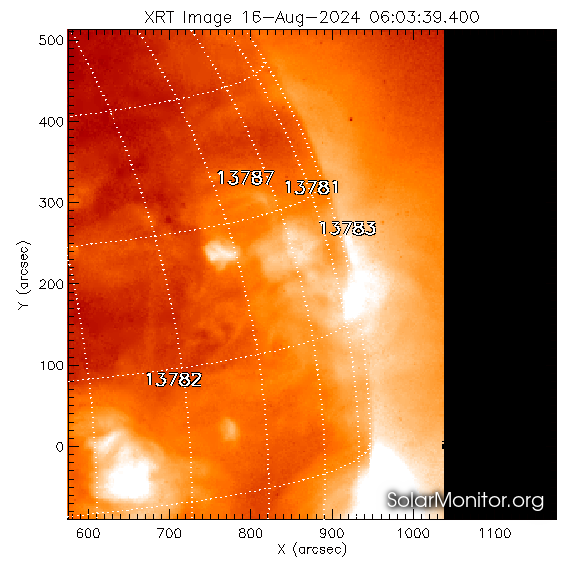

SWAP 174Å 20240816 22:13 AIA 193Å 20240816 23:24 XRT 20240816 06:03

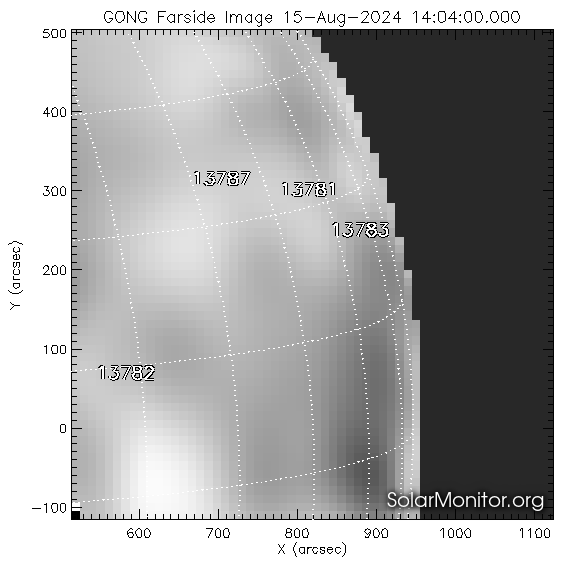

HMI Mag 20240816 21:58 No Time Data Available GONG Farside 20240815 14:04
No Time Data Available AIA 193Å 20240816 23:24 No Time Data Available

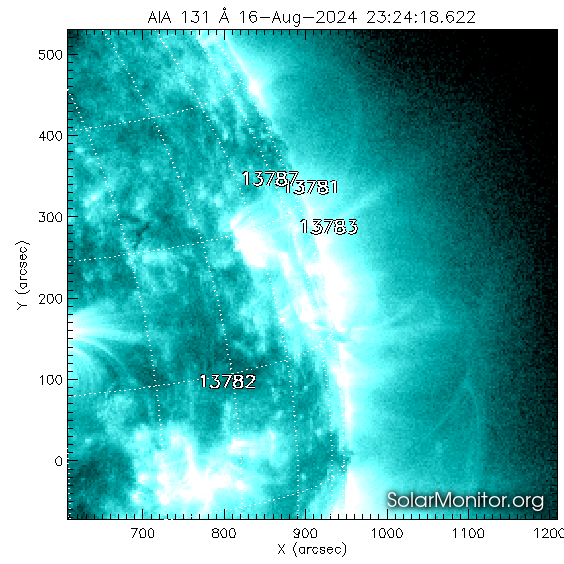

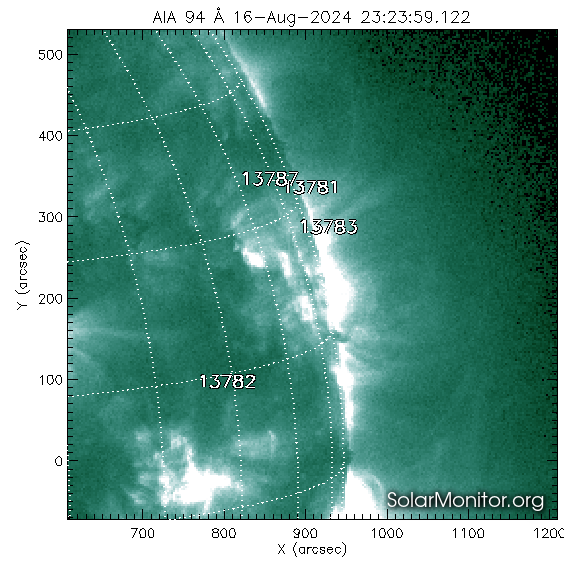

HMI Mag 20240816 21:58 AIA 94Å 20240816 23:23 AIA 131Å 20240816 23:24

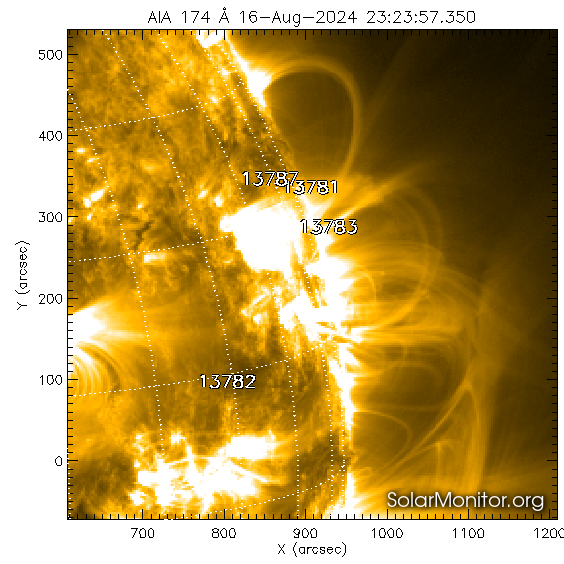

AIA 171Å 20240816 23:23 AIA 193Å 20240816 23:24 AIA 211Å 20240816 23:24
HMI Mag 20240816 21:58 AIA 304Å 20240816 23:24 AIA 335Å 20240816 23:27

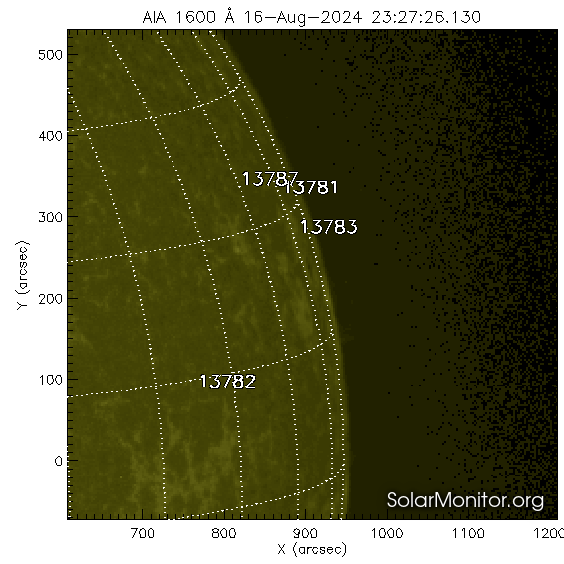

AIA 1600Å 20240816 23:27 AIA 1700Å 20240816 23:27 HMI 6173Å 20240816 14:34


Today's/Yesterday's NOAA Active Regions
NOAA Number
Latest
Position
Hale
Class
McIntosh Class
Sunspot Area
[millionths]
Number of Spots
Recent
Flares
13780 S09W88
(935",-150")
βγδ/βγδ Fki/Fkc 0410/0930 15/26 M1.3(13:13)
C5.3(12:54)
M1.3(11:47) / -
13781 N15W83
(908",230")
α/α Hsx/Hsx 0070/0090 01/01 -
13782 N03W58
(804",-9")
α/β Hax/Cao 0020/0030 02/04 -
13783 N11W91
(929",181")
α/α Axx/Axx 0010/0010 01/01 -
13784 N15W33
(500",153")
βγδ/βγδ Ekc/Dkc 0680/0700 23/30 -
13785 S12W20
(318",-298")
β/β Bxo/Bxi 0010/0020 10/12 C6.2(05:36)
C6.3(04:02)
/ C3.4(22:18)
13786 S22W68
(815",-391")
β/β Dsi/Cao 0080/0080 13/09 -
13788 S07W05
(82",-225")
βγ/β Cso/Dso 0100/0130 04/07 C8.1(15:37)
C5.3(11:53) / -
13790 S14E58
(-781",-285")
β/- Cso/--- 0040/---- 05/-- -
13787 N17W71
(857",240")
/ / / / -
13789 N26W02
(29",313")
/β /Bxo /0010 /03 -

Class (HH:MM) -Today
Class (HH:MM) -Yesterday

Events not associated with currently named NOAA regions: C5.1(00:25) C4.4(00:57) C4.1(02:52) C4.9(03:25) C5.7(05:03) C6.7(09:56) C4.8(12:07) C4.7(18:13) C9.0(22:08) C4.0(20:15) C4.1(23:00) C4.3(23:46)

Note: The tabulated data are based on the most recent NOAA/USAF Active Region Summary issued on 16-Aug-2024 00:30 UT . The greyed out and light-blue entries are values from the previous day. Slashed cells indicate that the active region has no spots. The latest positions of the active regions are given in both heliographic and heliocentric co-ordinates. The region positions are valid on 16-Aug-2024 23:30 UT .
