30 August 2024
20240829 Week Rotation Today Rotation Week 20240831


Main Far-side SDO short-wave SDO long-wave

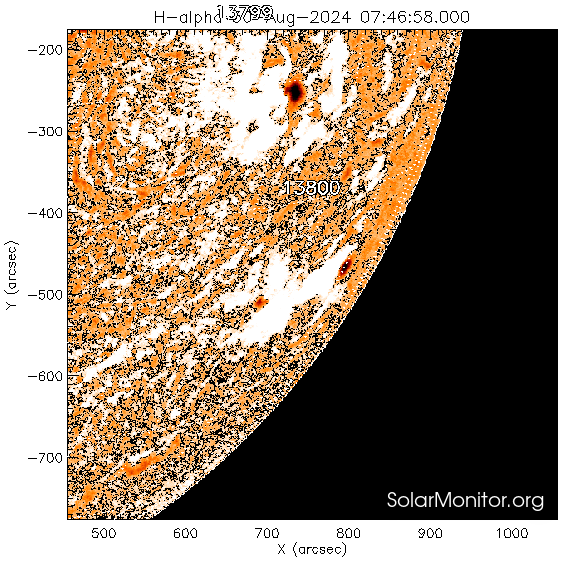

HMI Mag 20240830 20:58 HMI 6173Å 20240830 22:46 GHN Hα 20240830 07:46
SWAP 174Å 20240830 19:52 AIA 193Å 20240830 23:24 XRT 20240829 15:58
HMI Mag 20240830 20:58 No Time Data Available GONG Farside 20240829 12:00
No Time Data Available AIA 193Å 20240830 23:24 No Time Data Available

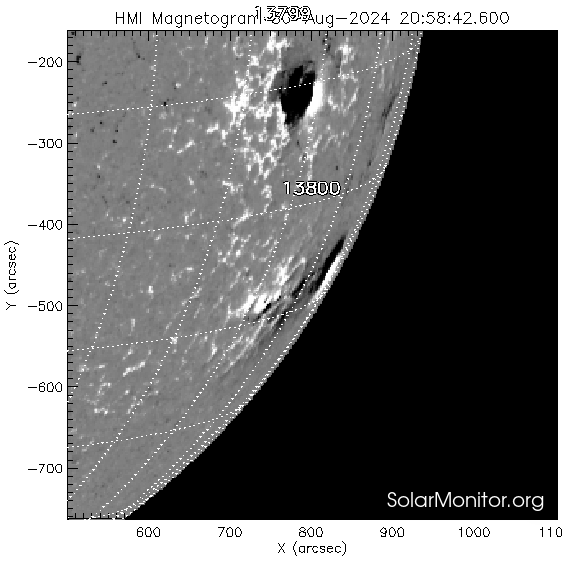

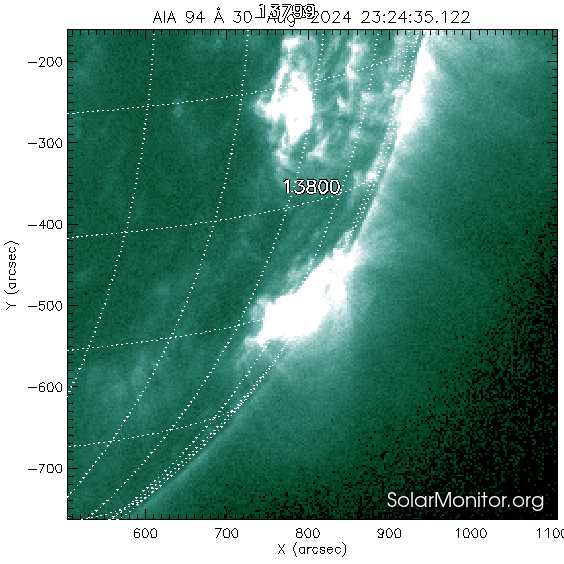

HMI Mag 20240830 20:58 AIA 94Å 20240830 23:24 AIA 131Å 20240830 23:24

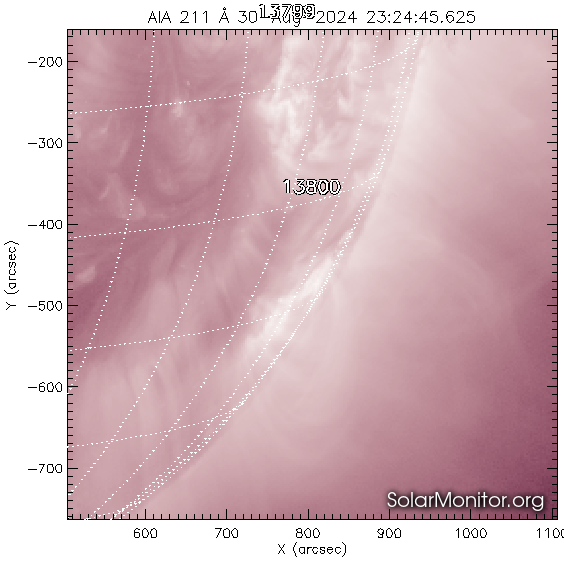

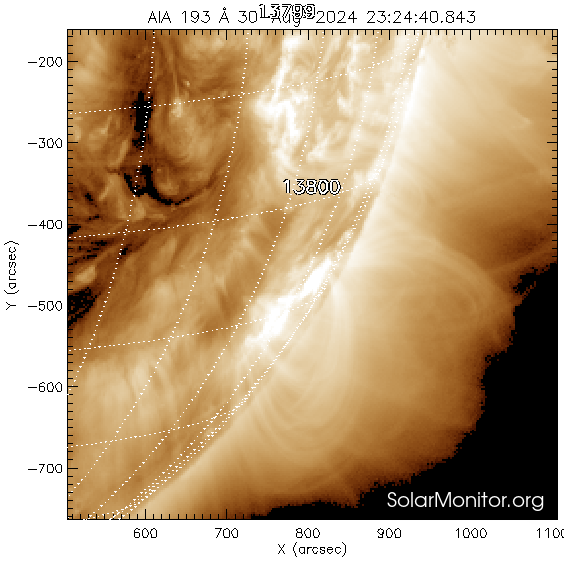

AIA 171Å 20240830 23:24 AIA 193Å 20240830 23:24 AIA 211Å 20240830 23:24

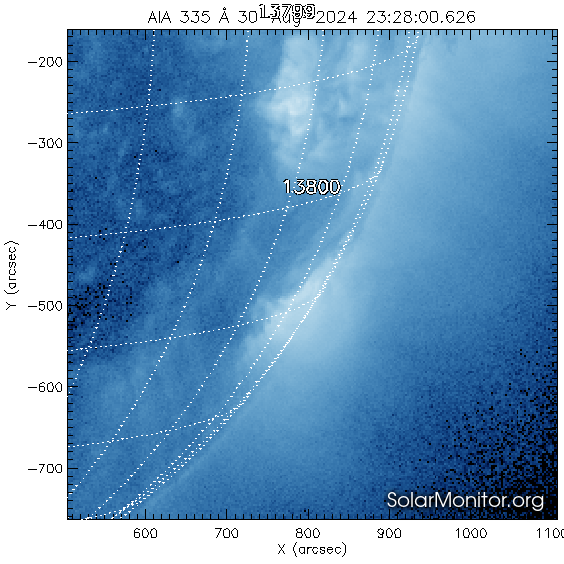

HMI Mag 20240830 20:58 AIA 304Å 20240830 23:24 AIA 335Å 20240830 23:28

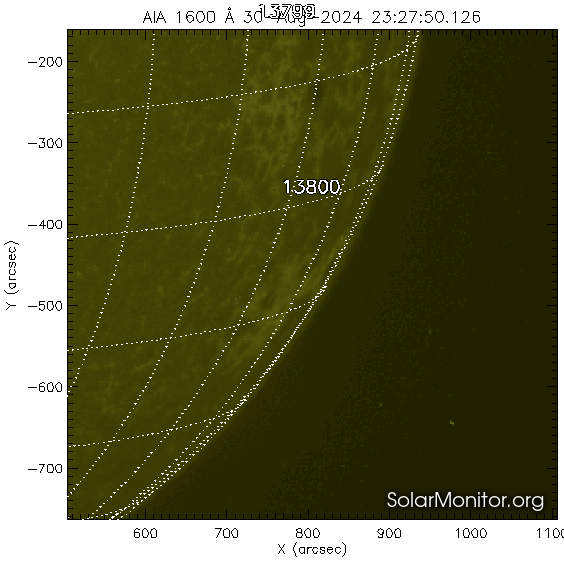

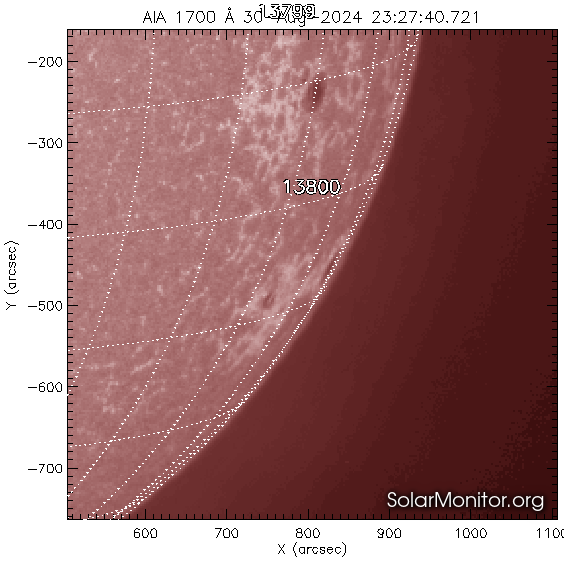

AIA 1600Å 20240830 23:27 AIA 1700Å 20240830 23:27 HMI 6173Å 20240830 22:46


Today's/Yesterday's NOAA Active Regions
NOAA Number
Latest
Position
Hale
Class
McIntosh Class
Sunspot Area
[millionths]
Number of Spots
Recent
Flares
13796 S04W91
(947",-63")
β/βγ Cso/Dsi 0030/0140 03/09 -
13798 N04W73
(907",31")
α/α Hsx/Hsx 0040/0020 01/01 -
13799 S11W56
(774",-245")
βγ/βγ Cko/Cko 0320/0320 05/11 -
13800 S27W72
(805",-461")
βγ/βγ Fki/Ehi 0450/0410 13/13 -
13801 N08W38
(581",38")
β/β Cso/Cso 0120/0120 06/03 -
13803 N14E16
(-255",117")
β/β Cso/Dao 0090/0070 07/08 -
13804 S25E10
(-150",-506")
α/α Hsx/Hsx 0100/0040 01/01 -
13806 S10E42
(-628",-251")
β/β Dkc/Dao 0380/0100 08/03 -
13795 N09W91
(938",149")
/ / / / -
13805 N08E07
(-115",14")
/α /Axx /0010 /01 -

Class (HH:MM) -Today
Class (HH:MM) -Yesterday

Events not associated with currently named NOAA regions: C6.6(01:08) C7.3(01:43) C3.6(06:22) C5.1(07:28) C7.2(08:47) C6.1(09:01) C6.3(12:44) C6.2(13:04) C5.5(15:06) C6.9(15:27) C5.1(17:43) C5.8(20:49) M1.2(02:00) M3.8(12:13) C5.6(05:26) C5.4(15:18) C3.6(16:22) C3.3(18:25) C4.0(19:02) C3.8(20:06)

Note: The tabulated data are based on the most recent NOAA/USAF Active Region Summary issued on 30-Aug-2024 00:30 UT . The greyed out and light-blue entries are values from the previous day. Slashed cells indicate that the active region has no spots. The latest positions of the active regions are given in both heliographic and heliocentric co-ordinates. The region positions are valid on 30-Aug-2024 23:30 UT .
