6 September 2024
20240905 Week Rotation Today Rotation Week 20240907


Main Far-side SDO short-wave SDO long-wave

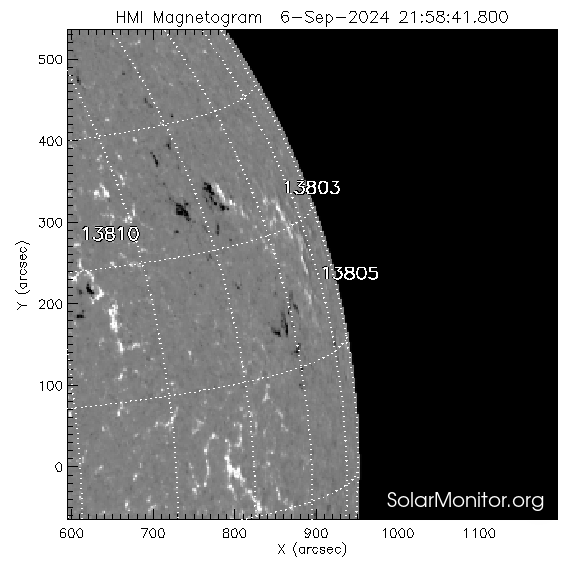

HMI Mag 20240906 21:58 HMI 6173Å 20240906 22:46 No Time Data Available

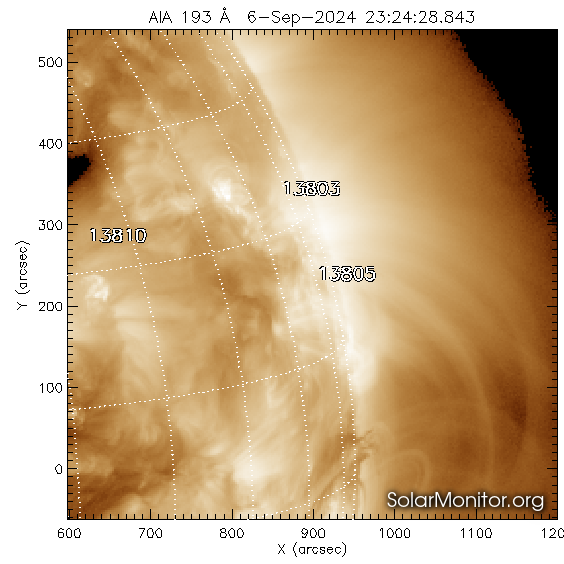

SWAP 174Å 20240906 21:52 AIA 193Å 20240906 23:24 XRT 20240904 04:08

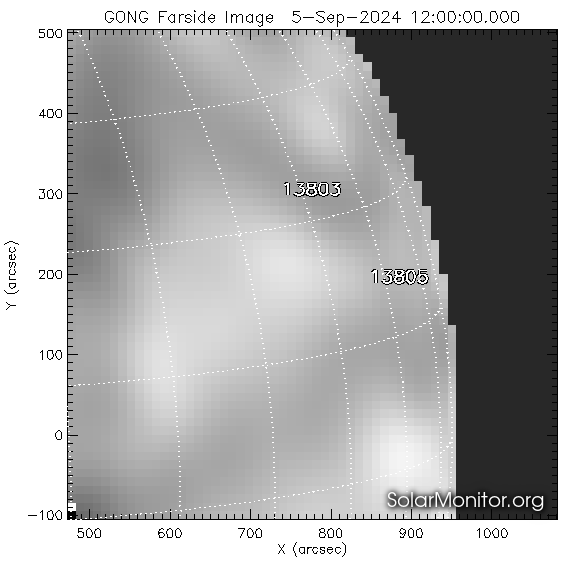

HMI Mag 20240906 21:58 No Time Data Available GONG Farside 20240905 12:00
No Time Data Available AIA 193Å 20240906 23:24 No Time Data Available

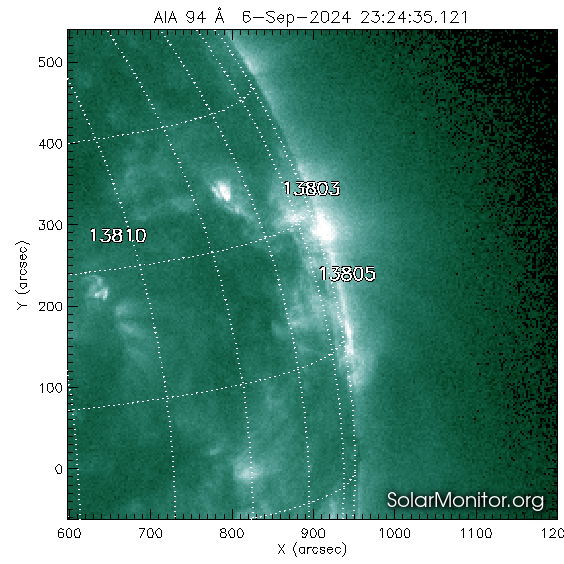

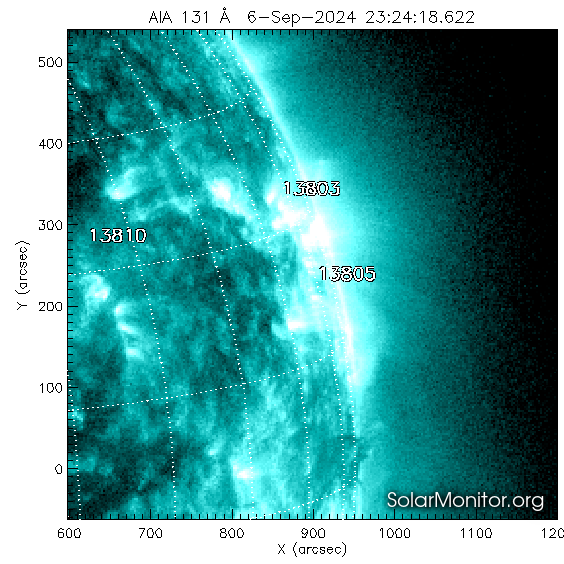

HMI Mag 20240906 21:58 AIA 94Å 20240906 23:24 AIA 131Å 20240906 23:24
AIA 171Å 20240906 23:24 AIA 193Å 20240906 23:24 AIA 211Å 20240906 23:24

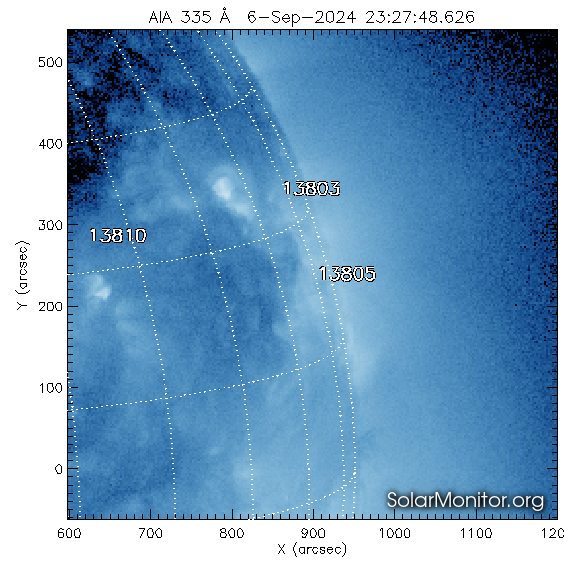

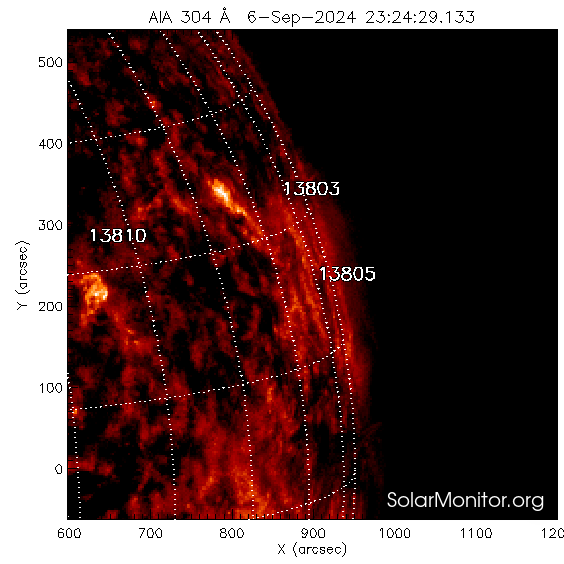

HMI Mag 20240906 21:58 AIA 304Å 20240906 23:24 AIA 335Å 20240906 23:27

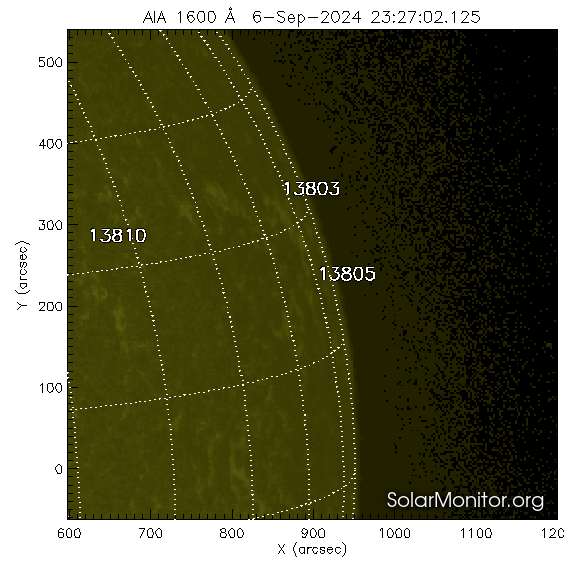

AIA 1600Å 20240906 23:27 AIA 1700Å 20240906 23:27 HMI 6173Å 20240906 22:46


Today's/Yesterday's NOAA Active Regions
NOAA Number
Latest
Position
Hale
Class
McIntosh Class
Sunspot Area
[millionths]
Number of Spots
Recent
Flares
13806 S12W51
(725",-270")
βγδ/βγδ Ekc/Ekc 0280/0250 39/34 -
13807 S15W91
(918",-242")
βγ/βγ Eki/Eki 0330/0340 10/11 -
13808 S10W41
(616",-253")
β/β Dsi/Cso 0090/0080 10/10 -
13811 S11W10
(162",-297")
β/β Dsi/Dki 0240/0290 12/11 C7.4(20:44)
C8.0(19:08)
C5.8(17:32)
C3.2(15:34)
C3.3(15:16)
C6.3(13:57)
C5.3(04:11)
C4.3(01:39)
C5.0(01:18)
C5.3(01:06)
C5.3(00:54) / -
13813 S23E07
(-107",-480")
βγ/βγ Fkc/Ekc 0370/0350 35/24 -
13814 N16E47
(-671",182")
α/α Hsx/Hax 0180/0180 01/01 -
13803 N16W79
(898",238")
/ / / / -
13804 S24W84
(864",-395")
/ / / / -
13805 N08W91
(942",133")
/ / / / -
13809 S21W44
(618",-420")
/ / / / -
13810 N16W46
(660",180")
/ / / / -
13812 N14W24
(377",122")
/ / / / -

Class (HH:MM) -Today
Class (HH:MM) -Yesterday

Events not associated with currently named NOAA regions: C4.4(00:40) C4.9(01:50) C5.8(02:14) C6.1(02:39) C7.8(05:47) C5.4(06:46) C7.6(07:53) C7.0(15:50) C6.1(20:19)

Note: The tabulated data are based on the most recent NOAA/USAF Active Region Summary issued on 6-Sep-2024 00:30 UT . The greyed out and light-blue entries are values from the previous day. Slashed cells indicate that the active region has no spots. The latest positions of the active regions are given in both heliographic and heliocentric co-ordinates. The region positions are valid on 6-Sep-2024 23:30 UT .
