30 April 2025
20250429 Week Rotation Today Rotation Week 20250501


Main Far-side SDO short-wave SDO long-wave

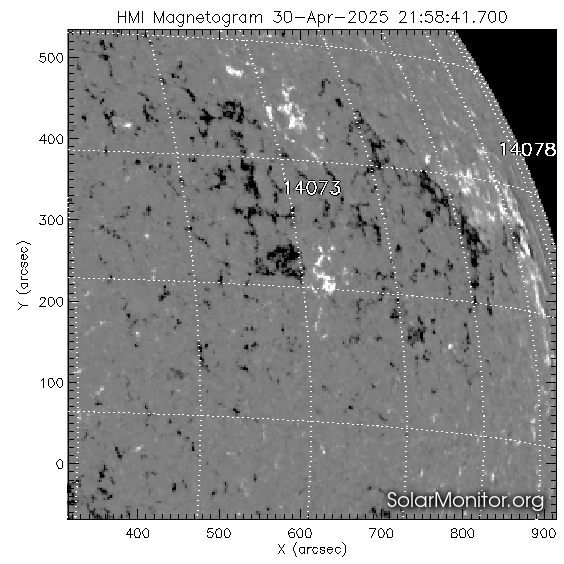

HMI Mag 20250430 01:58 HMI 6173Å 20250430 02:46 No Time Data Available

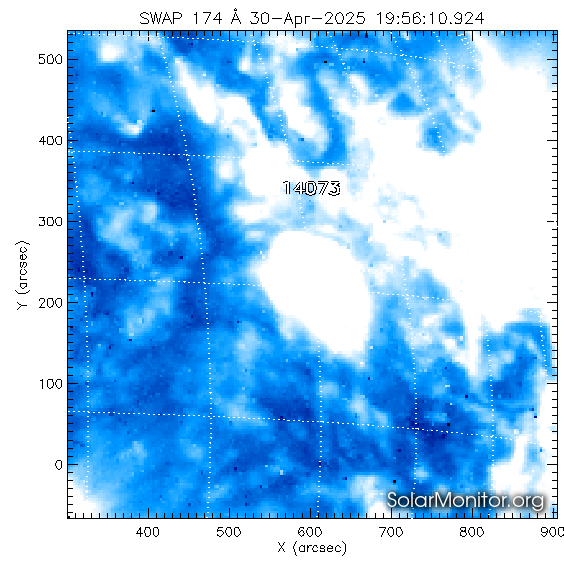

SWAP 174Å 20250430 01:47 AIA 193Å 20250430 03:27 XRT 20250427 06:22
HMI Mag 20250430 01:58 No Time Data Available GONG Farside 20250429 00:00
No Time Data Available AIA 193Å 20250430 03:27 No Time Data Available

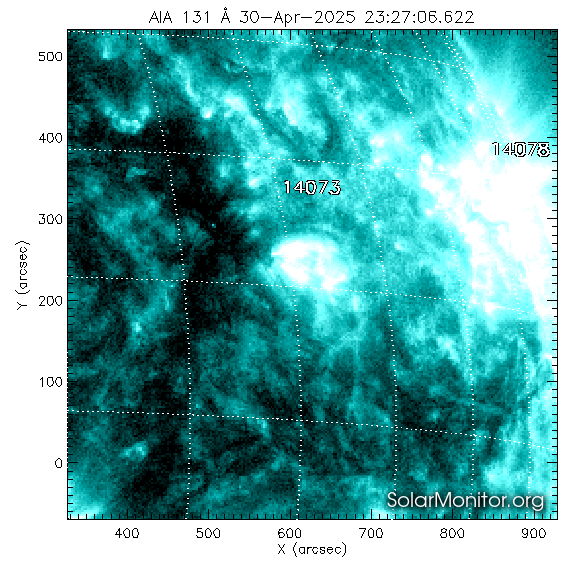

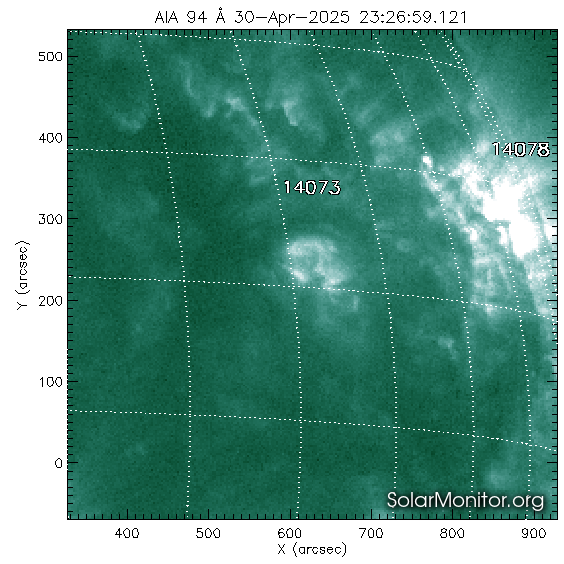

HMI Mag 20250430 01:58 AIA 94Å 20250430 03:27 AIA 131Å 20250430 03:27

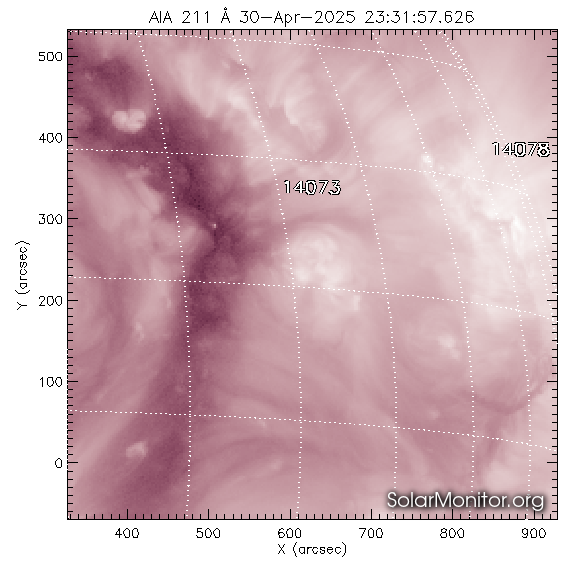

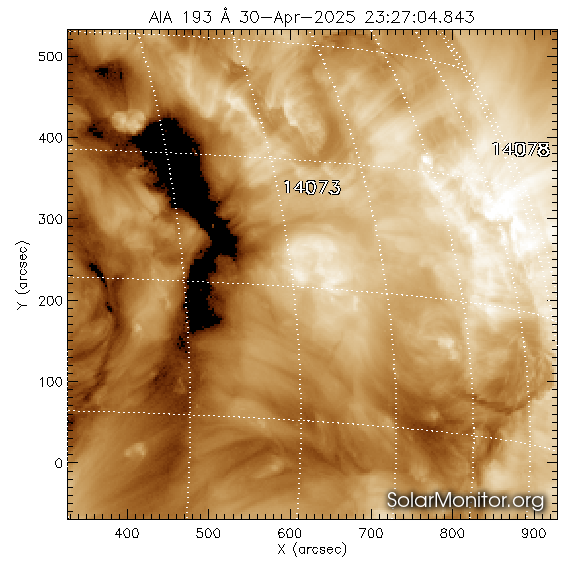

AIA 171Å 20250430 03:27 AIA 193Å 20250430 03:27 AIA 211Å 20250430 03:27

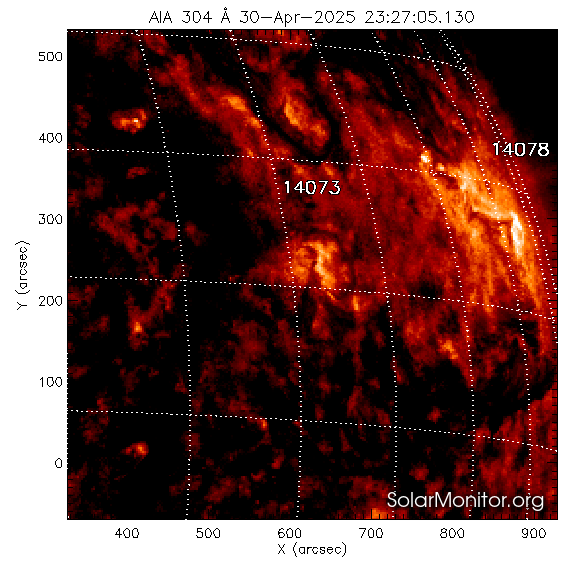

HMI Mag 20250430 01:58 AIA 304Å 20250430 03:27 AIA 335Å 20250430 03:27

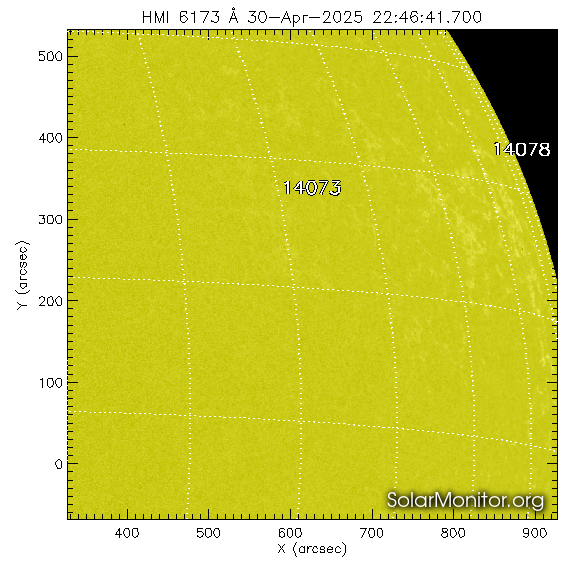

AIA 1600Å 20250430 03:31 AIA 1700Å 20250430 03:31 HMI 6173Å 20250430 02:46


Today's/Yesterday's NOAA Active Regions
NOAA Number
Latest
Position
Hale
Class
McIntosh Class
Sunspot Area
[millionths]
Number of Spots
Recent
Flares
14065 S31W91
(816",-490")
α/α Hsx/Hsx 0020/0030 01/01 - / C7.3(23:11)
14068 S24W46
(627",-342")
α/β Axx/Bxo 0010/0010 01/02 -
14070 S12W60
(808",-163")
β/βγ Dso/Dso 0070/0060 07/08 -
14072 S18W20
(310",-231")
β/β Dai/Dai 0060/0070 05/09 -
14076 N06E02
(-33",170")
α/α Hsx/Hsx 0080/0090 01/01 C1.5(22:08)
C1.5(17:48)
C5.3(14:57)
C2.7(12:08)
C2.2(06:49)
- / M1.7(05:10)
C2.4(04:51)
C1.6(04:40)
C1.7(04:13)
14077 S17E02
(-31",-210")
α/α Axx/Hrx 0010/0010 01/02 -
14078 N16W63
(816",293")
β/β Cro/Bxo 0020/0010 04/02 - / M1.7(10:49)
M1.3(09:45)
14079 N08E65
(-856",162")
βγ/β Ehi/Dso 0560/0120 05/02 -
14069 S07W89
(944",-114")
/α /Axx /0010 /01 -
14073 N11W30
(469",242")
/ / / / -
14075 S11W10
(163",-113")
/ / / / - / C1.9(09:24)

Class (HH:MM) -Today
Class (HH:MM) -Yesterday

Events not associated with currently named NOAA regions: C1.3(13:55) C1.2(18:53)

Note: The tabulated data are based on the most recent NOAA/USAF Active Region Summary issued on 30-Apr-2025 00:30 UT . The greyed out and light-blue entries are values from the previous day. Slashed cells indicate that the active region has no spots. The latest positions of the active regions are given in both heliographic and heliocentric co-ordinates. The region positions are valid on 30-Apr-2025 03:30 UT .
