12 May 2025
20250511 Week Rotation Today Rotation Week 20250513


Main Far-side SDO short-wave SDO long-wave
HMI Mag 20250512 17:58 HMI 6173Å 20250512 18:46 No Time Data Available

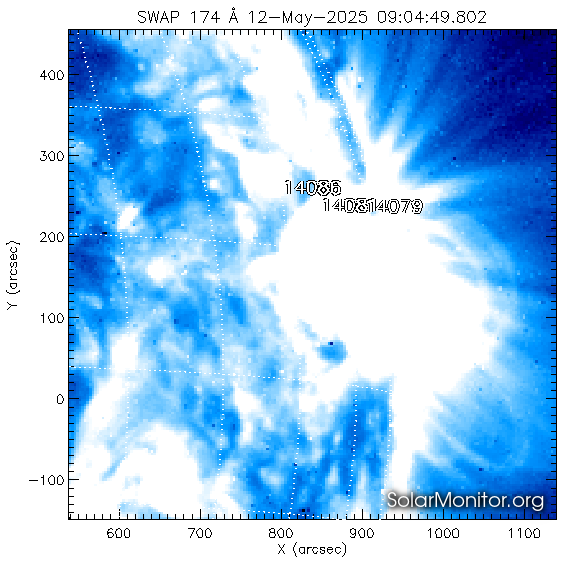

SWAP 174Å 20250512 17:41 AIA 193Å 20250512 19:25 XRT 20250511 06:10

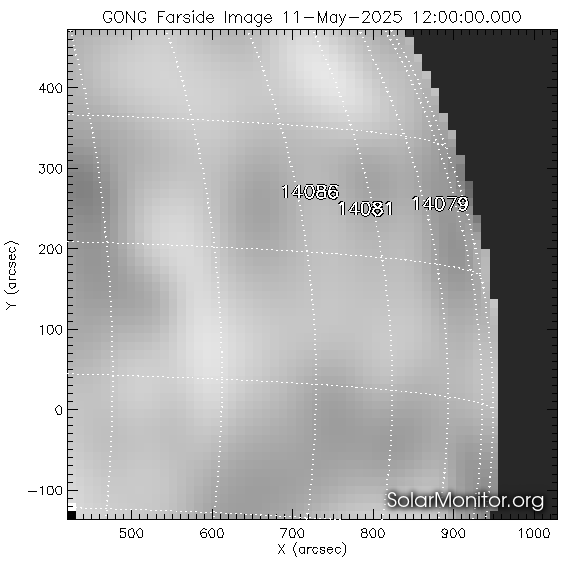

HMI Mag 20250512 17:58 No Time Data Available GONG Farside 20250511 12:00
No Time Data Available AIA 193Å 20250512 19:25 No Time Data Available
HMI Mag 20250512 17:58 AIA 94Å 20250512 19:25 AIA 131Å 20250512 19:25

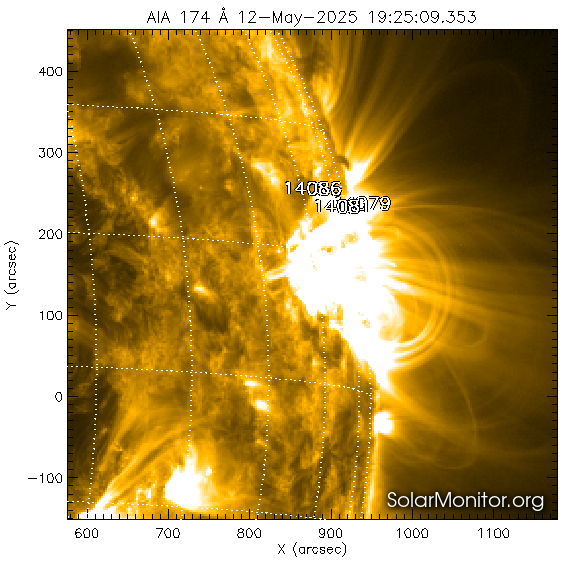

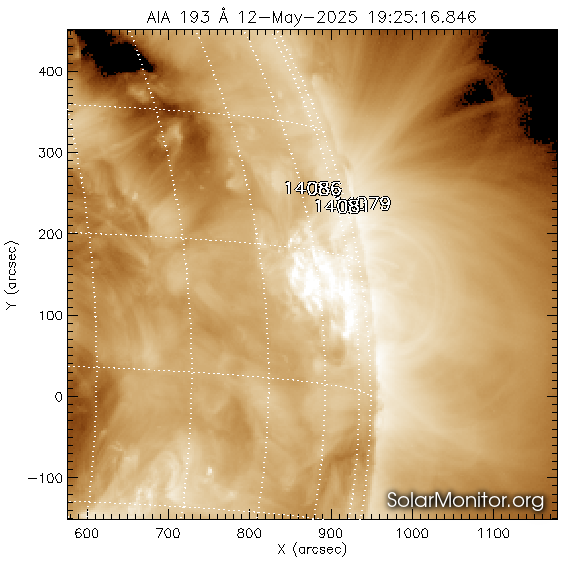

AIA 171Å 20250512 19:25 AIA 193Å 20250512 19:25 AIA 211Å 20250512 19:25

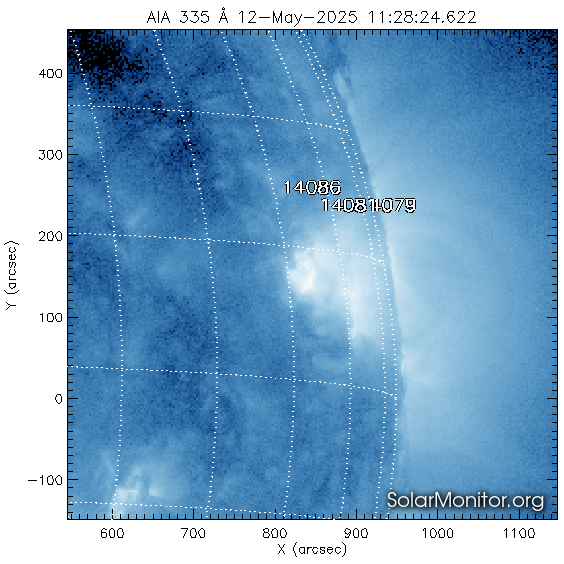

HMI Mag 20250512 17:58 AIA 304Å 20250512 19:25 AIA 335Å 20250512 19:27

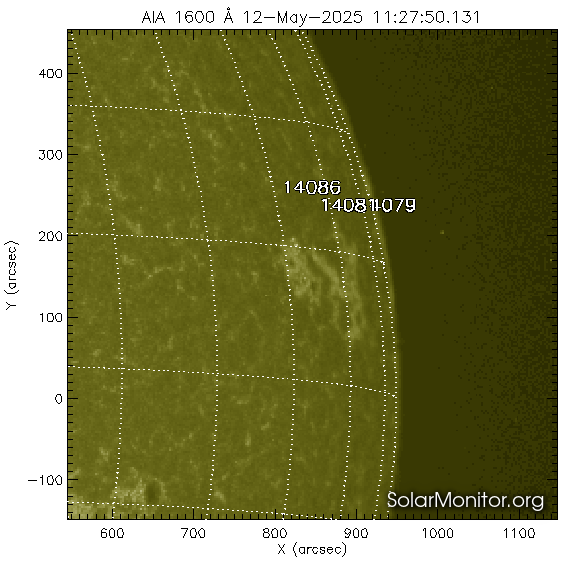

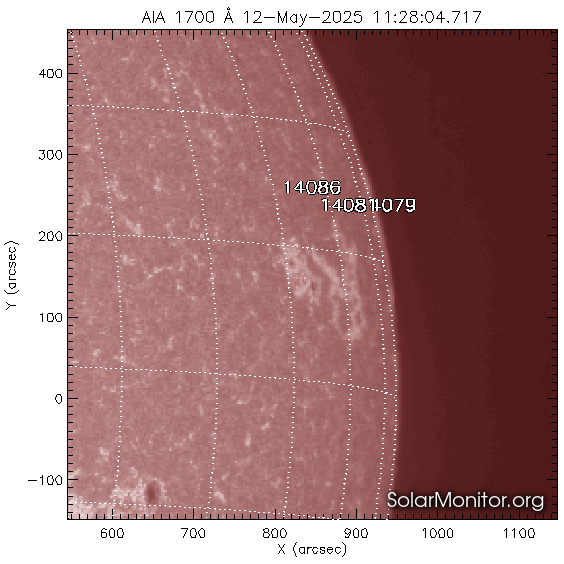

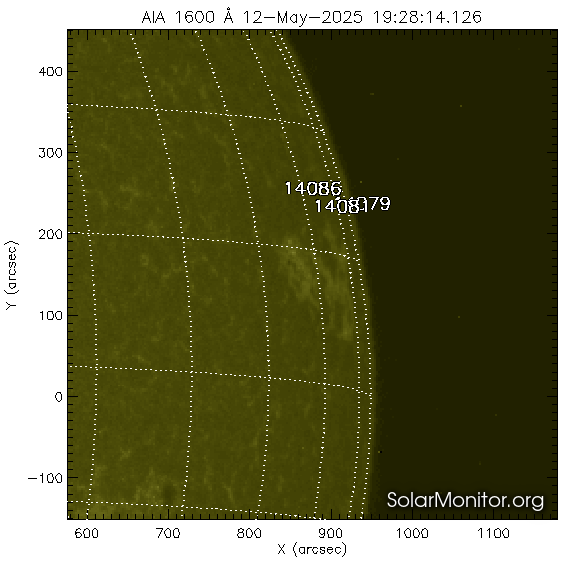

AIA 1600Å 20250512 19:28 AIA 1700Å 20250512 19:28 HMI 6173Å 20250512 18:46


Today's/Yesterday's NOAA Active Regions
NOAA Number
Latest
Position
Hale
Class
McIntosh Class
Sunspot Area
[millionths]
Number of Spots
Recent
Flares
14079 N08W91
(939",131")
β/βγ Cso/Cki 0140/0640 03/08 C2.7(12:49)
C1.6(05:41)
C1.1(04:21)
C1.1(02:29)
C1.6(00:41)
/ M1.9(23:55)
C2.3(21:29)
C1.1(20:20)
C1.3(18:16)
C2.6(16:07)
C1.3(14:12)
C2.6(11:25)
14081 N07W76
(915",127")
β/β Cso/Cao 0020/0050 02/05 -
14082 S10W46
(674",-131")
α/α Hsx/Hsx 0030/0070 01/01 -
14084 S21E10
(-154",-296")
β/α Cso/Hsx 0020/0050 02/01 -
14085 N02W01
(16",81")
β/β Dso/Bxo 0030/0010 06/05 C2.7(14:52)
C1.1(11:52)
/ C3.8(14:52)
14086 N08W69
(878",149")
β/- Cso/--- 0010/---- 03/-- -

Class (HH:MM) -Today
Class (HH:MM) -Yesterday

Events not associated with currently named NOAA regions: C1.2(03:34) C2.0(05:58) C1.2(16:54) C1.0(17:14) C5.2(23:34)

Note: The tabulated data are based on the most recent NOAA/USAF Active Region Summary issued on 12-May-2025 00:30 UT . The greyed out and light-blue entries are values from the previous day. Slashed cells indicate that the active region has no spots. The latest positions of the active regions are given in both heliographic and heliocentric co-ordinates. The region positions are valid on 12-May-2025 19:30 UT .
